model:PT-TX1200-H219CK2

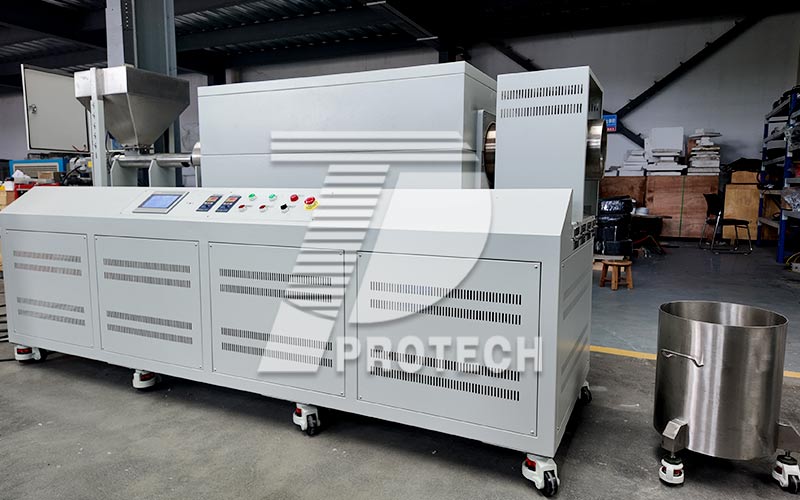

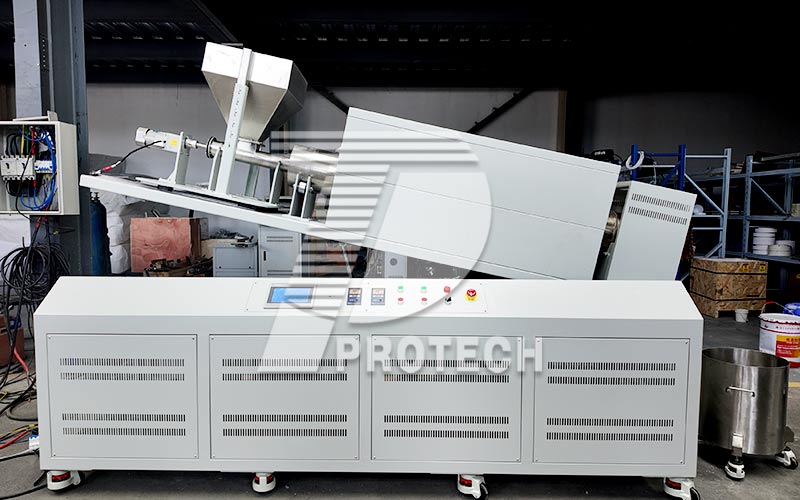

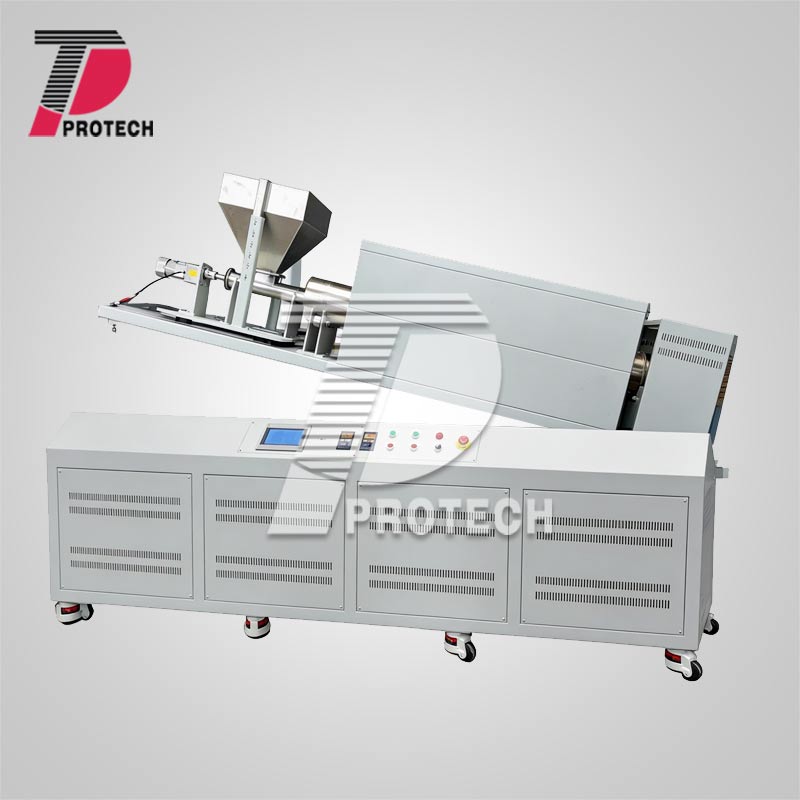

1000°C Dual-Zone Rotary Tube Furnace
Application: The PT-TX1200-H219CK2 is a reliable, cost-effective continuous rotary tube furnace designed for industrial and laboratory thermal processing applications.
Contact us for customize
send-email:
info@lab-furnace.com
Detailed Parameters of the Product
Introduction
The PT-TX1200-H219CK2 is a reliable, cost-effective continuous rotary tube furnace designed for industrial and laboratory thermal processing applications. Engineered with a dual-zone heating system, adjustable tilting/rotation mechanism, and durable 310S stainless steel furnace tube, this furnace delivers consistent, uniform heat treatment for powders, granules, and bulk materials, making it ideal for continuous production and R&D scenarios.4evMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Key Features
Dual-Zone Heating System: 300+300mm dual heating zones with resistance wire elements, reaching a maximum operating temperature of 1000°C with a fast heating rate of 10°C/min, ensuring precise temperature control and uniform processing.4evMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacFlexible Tilting & Rotation: 0-10° adjustable tilting angle and 3-6 rpm variable rotation speed enable continuous material feeding, thorough mixing, and efficient material flow, eliminating dead zones for consistent results.4evMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacDurable & Corrosion-Resistant: 310S stainless steel furnace tube (Ø219×1600mm) offers excellent high-temperature oxidation resistance, suitable for long-term operation in air or inert atmosphere environments.4evMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacUser-Friendly Control: 7-inch touchscreen controller with intuitive operation, programmable temperature curves, and real-time monitoring, simplifying process setup and ensuring safe, unattended operation.4evMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacCustomizable Design: Fully customizable to meet specific process requirements, including temperature range, furnace tube material/size, atmosphere system, and automation upgrades.4evMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Typical Applications
This rotary tube furnace is widely used in:4evMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacPowder processing: Calcination, drying, and heat treatment of chemical powders, battery materials, and mineral powders4evMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacFood & agriculture: Roasting, drying, and sterilization of agricultural products and food ingredients4evMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacEnvironmental protection: Pyrolysis of waste materials and activated carbon regeneration4evMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacCeramics & refractories: Sintering and calcination of ceramic powders and refractory materials4evMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacLaboratory R&D: Pilot-scale thermal processing tests for new material development4evMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4evMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4evMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4evMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac4evMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacTechnical parameters4evMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
| Item |
Description |
| Product Name |
Rotary Tube Furnace |
| Product Model |
PT-TX1200-H219CK2 |
| Controller |
7-inch Touch Screen |
| Cabinet Color |
Standard |
| Temperature |
Max Operating Temperature: 1000°C |
| Chamber Size |
300+300mm (Dual Heating Zones) |
| Tilting & Rotation |
Tilting Angle: 0-10°; Rotation Speed: 3-6 rpm |
| Heating Element |
Resistance Wire |
| Heating Rate |
10°C/min (Max) |
| Thermocouple |
Type N |
| Furnace Tube |
310S Stainless Steel Tube; Dia 219 * 1600mm |
| Customizable Available |
