model:PT-TX1500-S100LB2W

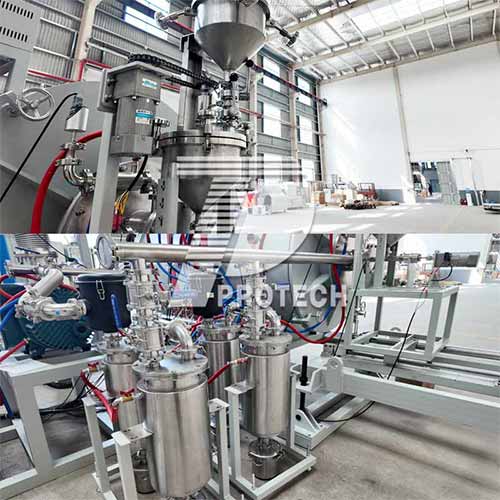

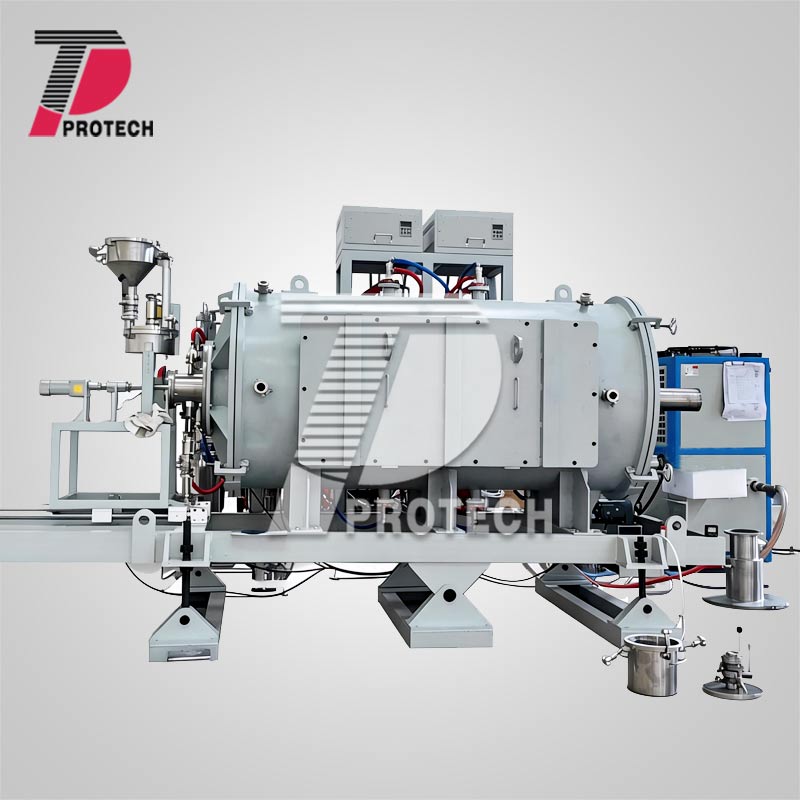

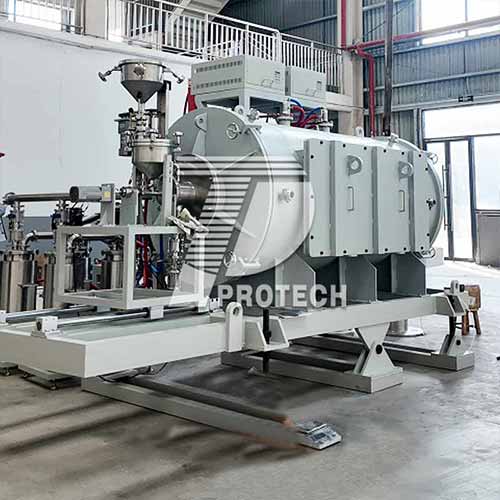

Large dual-temp zone graphite-heated continuous rotary tube furnace
Application: Our PT-TX1500-S100LB2W graphite tube furnace is a turnkey high-temperature processing solution built for industrial continuous production. Combining advanced graphite heating technology, precise vacuum control, and flexible process adaptability, this furnace delivers reliable, consistent performance for a wide range of thermal processing applications.
Contact us for customize
send-email:
info@lab-furnace.com
Detailed Parameters of the Product
Introduction
Our PT-TX1500-S100LB2W graphite tube furnace is a turnkey high-temperature processing solution built for industrial continuous production. Combining advanced graphite heating technology, precise vacuum control, and flexible process adaptability, this furnace delivers reliable, consistent performance for a wide range of thermal processing applications.wjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
wjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Designed for maximum efficiency, the furnace features a dual-zone 1000mm heating section with graphite heating elements, reaching up to 1600℃ while maintaining stable operation at ≤1500℃. The rotating and tilting furnace tube enables continuous material feeding and uniform heat treatment, significantly boosting production efficiency. With a robust double-layer water-cooled vacuum system, it achieves an ultra-high-pure processing environment, eliminating oxidation and contamination for high-quality end products. The user-friendly touchscreen controller simplifies operation, while the complete set of auxiliary equipment (vacuum pump, chiller, gas system, etc.) ensures easy installation and immediate production start-up.wjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacwjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacwjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacCore AdvantageswjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacwjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacContinuous production capability: Rotating + tilting tube design for uninterrupted material processingwjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Ultra-high temperature stability: Graphite heating system for long-term 1500℃ operationwjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Precise vacuum control: 10Pa ultimate vacuum for oxygen-free, contamination-free processingwjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Turnkey solution: Complete system with all necessary accessories for one-stop deliverywjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Customizable process: Adjustable temperature, rotation speed, and atmosphere for diverse materialswjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Low maintenance cost: Durable graphite insulation and heating elements for extended service lifewjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Typical Applications
Perfect for industries requiring continuous high-temperature vacuum processing, including:wjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacMetal injection molding (MIM) and powder metallurgy sinteringwjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacLithium-ion battery material sintering and calcinationwjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacAdvanced ceramic component manufacturingwjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacHigh-temperature alloy heat treatment and brazingwjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacChemical material pyrolysis and reductionwjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacwjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
wjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacwjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacTechnical parameterswjSMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
| Item |
Description |
| Product Name |
Large dual-temp zone graphite-heated continuous rotary tube furnace |
| Product Model |
PT-TX1500-S100LB2W (Customization is available.) |
| Maximum Temperature |
1600℃, Operating Temperature ≤1500℃ |
| Controller |
Touch Screen |
| Furnace Tube |
Graphite, Outer Diameter 100mm, Inner Diameter 70mm, Length 1800mm |
| Cabinet Color |
Standard Color |
| Heating Zone |
1000mm (Length), 2 Zones |
| Heating Element |
Graphite Rod |
| Rotameter |
2 Channels, Inert Gas |
| Ultimate Vacuum |
10 Pa |
| Hot State Vacuum |
40 Pa Inside the Tube |
| Tilting Structure |
External Vacuum Chamber with External Support & Tilting Structure |
| Tilting Angle |
0-3° Adjustable |
| External Vacuum Chamber |
Double-layer Water-cooled |
| Furnace Door |
2 Flange Doors (Front & Rear) |
| Insulation Material |
Graphite |
| Feeding Structure |
Feeding Tube Material: 310S |
| Furnace Tube Rotation Speed |
2-4r/min Adjustable |
| Feeding Hopper / Receiving Hopper / Transfer Hopper |
5L, Material: 316L |
| Vacuum Gauge |
Resistance Vacuum Gauge |
| Thermocouple |
Type B |
| Gas Charging System |
Gas Inlet at Discharge End, 1 Manual Outlet Valve |
| Condensing Tank |
Double-layer Jacket, Jacket for Cooling Water Circulation |
| Others |
Vacuum Pump, Water Chiller, Air Compressor, Distribution Cabinet, Mechanical Pressure Gauge & Accessories |
