model:PT-V1300

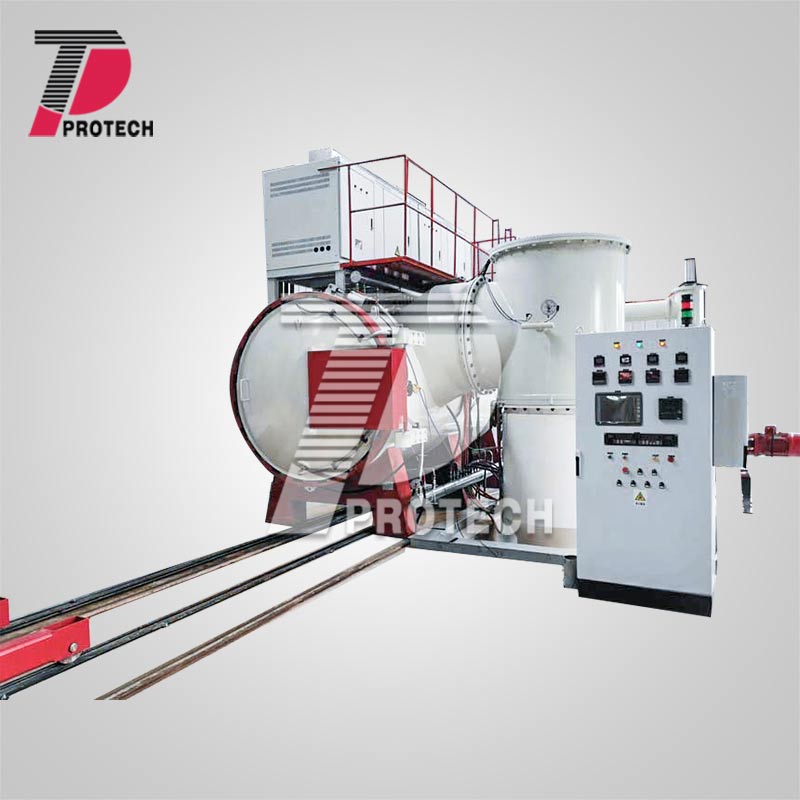

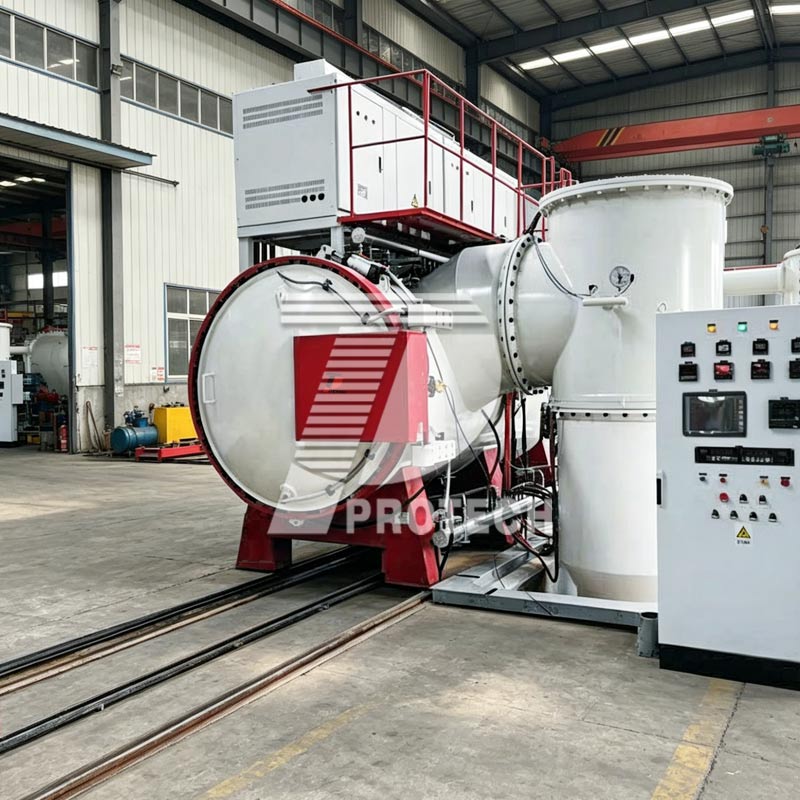

High temperature brazing vacuum furnace
Application: Mainly used for vacuum brazing of stainless steel, copper alloy, high temperature alloy, titanium alloy, cemented carbide, metal ceramics, magnetic materials, non-ferrous metal materials and other materials, and the applicable brazing materials are nickel
Contact us for customize
send-email:
info@lab-furnace.com
Detailed Parameters of the Product
Introduction:mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacThe heating chamber can be heated by graphite tube, and the structure of multi-layer graphite felt or graphite hard felt insulation can be used;mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
For high product requirements or special material brazing, molybdenum belt heating, molybdenum sheet and stainless steel plate composite insulation structure heating chamber can also be used;mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The effective heating area size can be customized according to customer needs;mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Computer control system.mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacmGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacApplication area:mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacMainly used for vacuum brazing of stainless steel, copper alloy, high temperature alloy, titanium alloy, cemented carbide, metal ceramics, magnetic materials, non-ferrous metal materials and other materials, and the applicable brazing materials are nickel-based, copper, silver-based, etc.mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacmGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacAdvantages and features:mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacSingle chamber, internal heating, cold wall, horizontal structure；mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Reasonable arrangement of heating elements, large radiation area, long life；mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Reasonably designed metal heat insulation screen, good insulation effect, saving electricity, ensuring the high vacuum required for workpiece brazing.mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Multi-zone temperature control can be adopted to ensure good furnace temperature uniformity in the temperature zone；mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Equipped with a dedicated condensation filter device to eliminate the contamination of the vacuum pump group by flux vapor；mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The touch screen interface is friendly and practical, which can display and monitor the operation status of the equipment, call, edit and store the process program library, and has the display, query and printing functions of process reports, real-time curves, historical curves and fault alarm reports；mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Fully automatic control can realize "online" production management；mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
With safety interlocking, fault diagnosis and abnormal alarm functions；mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The furnace door is equipped with a unique sealing structure to ensure positive and negative pressure bidirectional sealing.mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Diversity of cooling methods are available.mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacTechnical parameters: (customizable according to user requirements)mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
| Model |
Effective heating area size(width * height * depth/mm） |
Maximum temperature（℃） |
Ultimate vacuum（pa） |
Temperature uniformity（℃） |
Pressure rise rate（Pa/h） |
Loading capacity(kg) |
| PT-V1300-36W |
300*300*400 |
1300 |
6.67*10-3 |
±5 |
0.67 |
80 |
| PT-V1300-96W |
400*400*600 |
1300 |
6.67*10-3 |
±5 |
0.67 |
150 |
| PT-V1300-175W |
500*500*700 |
1300 |
6.67*10-3 |
±5 |
0.67 |
280 |
| PT-V1300-324W |
600*600*900 |
1300 |
6.67*10-3 |
±5 |
0.67 |
450 |
| PT-V1300-768W |
800*800*1200 |
1300 |
6.67*10-3 |
±5 |
0.67 |
750 |
mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacThe above parameters can be adjusted according to process requirements and are not used as acceptance basis. The specific technical plan and agreement shall prevail.mGuMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
