model:PT-TL1000-S100

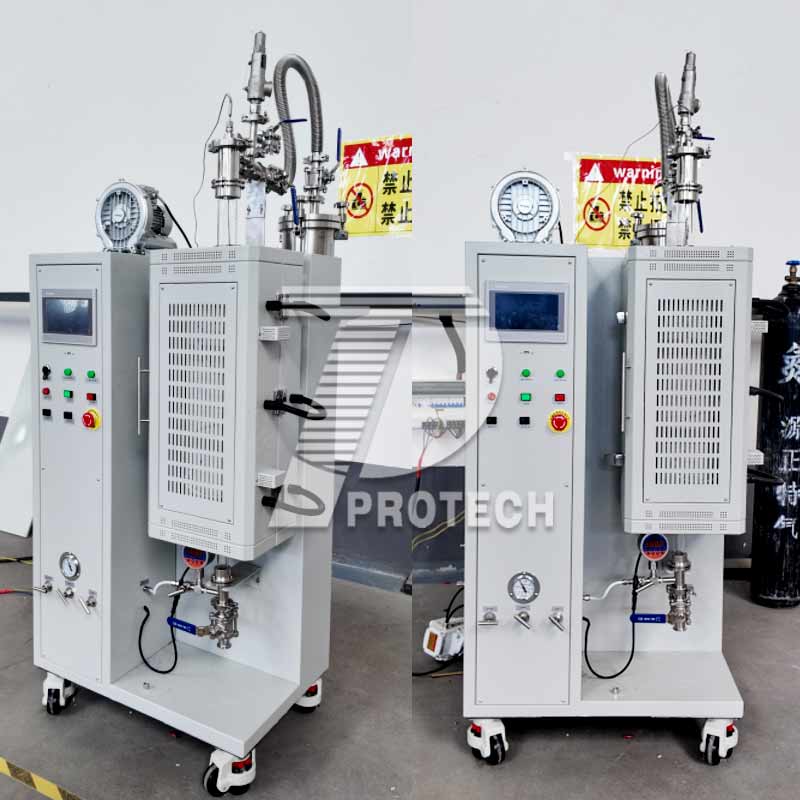

PT-TL1000-S100 Continuous fluidized bed vertical tube furnace

Application

Detailed Parameters of the Product

Introduction

The PT-TL1000-S100 is a vertical fluidized‑bed tube furnace designed for continuous thermal processing of powders and granular materials under controlled atmosphere. It features a carbon steel shell, dual‑layer high‑purity alumina fiber insulation, and a stainless steel working tube (OD 100 mm × length 1200 mm), with customizable heating zones and tube top structure. The furnace supports a maximum working temperature of 1000°C, uses resistance wire heating, and adopts N‑type thermocouple with PID/SCR automatic control, delivering temperature accuracy of ±1°C and a programmable 30‑segment heating profile. Equipped with mid‑tube adjustable feeding, bottom gas inlet, screw extractor for heavy particles, flange sealing with analog vacuum gauge, and forced cooling fans, it ensures stable, uniform, and safe fluidized‑bed reactions for lab research and small‑batch continuous production.

Application

This furnace is widely used in material research, chemical engineering, metallurgy, and environmental laboratories for processes requiring excellent gas‑solid contact and uniform heating. Typical applications include powder heat treatment, biomass pyrolysis, catalyst calcination and regeneration, fine particle drying, surface coating, metal powder annealing, ceramic precursor treatment, and other fluidized‑bed reactions under inert or reactive atmospheres. It is ideal for experiments and small‑scale production involving continuous feeding, uniform heating, and efficient gas‑solid interaction in a vertical tubular environment.

Model	PT-TL1000-S100
Structure	Carbon steel outside shell Two layers of Alumina fiber boards 1200deg.C alumina fiber 1400deg.C alumina fiber Cooling fans Feeding System: in the middle part of the tube, adjustable feeding rate. Gas inlet on the bottom of the tube. A screw extractor to take out the heavy particle. The design on the top of the tube will be customized according to your requirements.
Tube	Stainless steel tube OD.100mm×Len.1200mm (Can be customized according to customer needs)
Sealing	Flanges with rubber (With analog vacuum gauge)
Heating zone length	400+150+400mm (Can be customized according to customer needs)
Working Temperature	≤ 1000℃
Temperature sensor	N-type Thermocouple
Temperature Control	PID automatic control via SCR (Silicon controlled rectifier) Power control with phase angle fired, current limiting resistor 30 programmable segments for precise control overheating & broken thermocouple broken protection.
Heating Rate	0~15℃/min (suggestion: ≤10℃)
Control Accuracy	+/-1℃
Heating Element	Resistance wire
Warranty Period	1 year

1200°C Biomass Fluidized Bed Vertical Tube Furnace - Customizable upon request:
