Home > Products > Tube Furnace > Inclined Rotary Tube Furnace

model:PT-TX750-H426LK6W

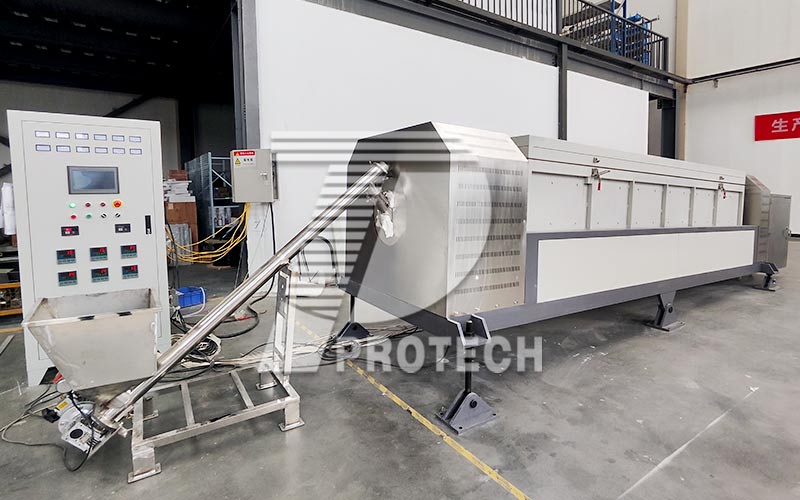

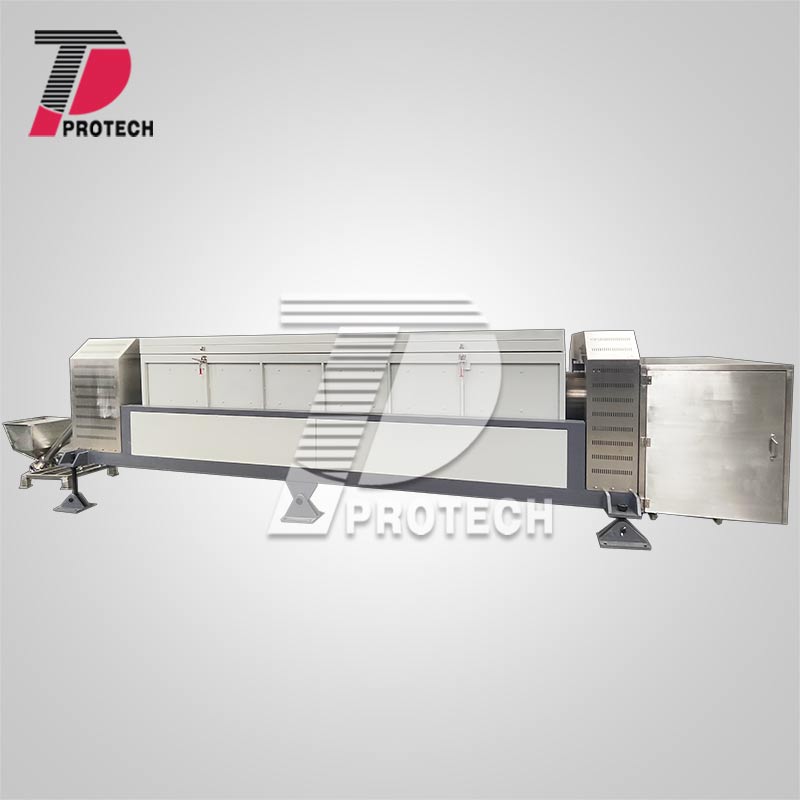

Continuous Rotary Furnace

Application

Detailed Parameters Of The Product

Main functions and features

1. The furnace adopts high-quality alumina polycrystalline fiber inorganic material formed by vacuum adsorption with Japanese technology, which has good thermal insulation performance, durability, high tensile strength, no foreign balls, high purity, and energy saving effect is obviously better than other fiber materials;

2. The entire furnace body adopts a double-layer liner structure with an air gap in the middle. Even if the furnace temperature reaches the highest, the surface of the furnace body can still be safely touched without a burning feeling.

3. The furnace is made of energy-saving materials, and the energy consumption of the whole machine is only 1/3 of the same traditional electric furnace, which is energy-saving and environmentally friendly.

4. Over-temperature alarm power-off function and leakage protection measures, safe and reliable operation.

Specification:

Feeding Hopper	Hopper Material	stainless steel
Rotary Furnace	Door Structure	Electrically split-able door design
	Furnace structure	Double layer steel casting with dual cooling fan
	Display	LED display
	Design Temperature	900℃
	Working Temperature	750℃
	Tube Material	High quality stainless steel tube
	Tube Diameter	426mm(OD)
	Hot Zone Length	3600mm
	Heating Rate	0-10℃/min
	Accuracy	±1℃
	Thermocouple	N Type (Each zone has independent thermocouple)
	Temperature control	● 30 programmable segments for precise control of heating rate, cooling rate and dwell time. ● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. ●Over temperature protection and alarm allows for operation without attendant.
	Sealing Mode	Relatively sealed
Discharge Hopper	Material	Stainless Steel
Working Voltage		380V 50Hz 3PH
Warranty		One-year limited warranty, provide life-time maintenance service. (Consumable parts are not covered by the warranty)
