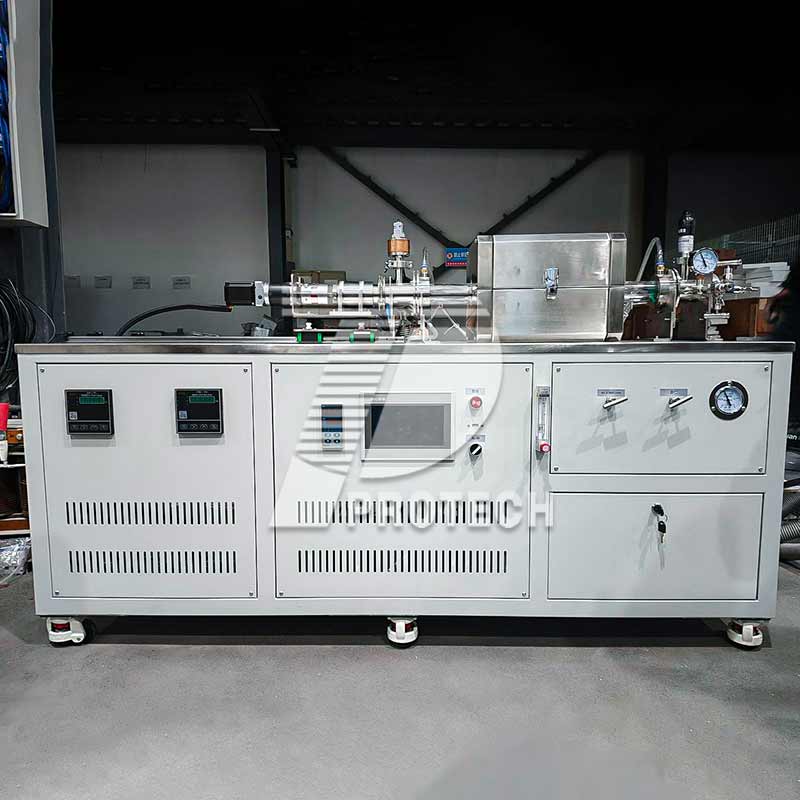

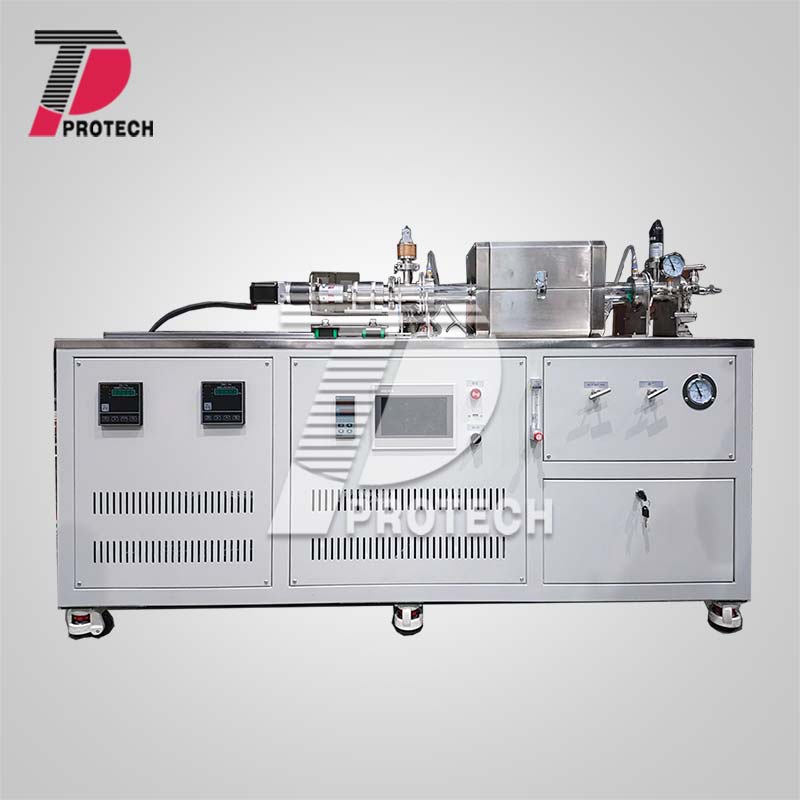

| Product model | PT-TCVD1200 |
| Maximum temperature | 1200℃ |
| Working temperature | ≦1100℃ |
| Heating zone | 200mm Customizable |
| Heating element | Molybdenum alloy resistance wire |
| Heating rate | 0-20ºC/min, 10C/min recommended |
| Tube size | Diameter 50*600mm Customizable |
| Tube material | High-purity quartz tube |
| Tube plugging | Metal screen on the left, detachable |
| Temperature control system | 7-inch touch screen control |
| Temperature control protection | With over-temperature and broken couple protection function |
| Temperature measuring element | N-type thermocouple |
| Temperature control accuracy | ±1℃ |
| Furnace material | Polycrystalline fiber material |
| Flange | Stainless steel sealed water-cooled flange, quartz lens on the right flange end |
| Sealing system | O-ring extrusion seal is used between the furnace tube and the flange; |
| Dynamic seal is used between the rotating motor and the flange | |
| Furnace structure | Outer shell is made of stainless steel, double-layer liner structure, and the furnace door is opened manually |
| Furnace shell temperature | ≤55℃ |
| Speed | 200r/min |
| Connection method | Coupling connection with shaft dynamic seal transmission |
| Name | DRV10 rotary vane pump 2L/S |
| Main parameters | Ultimate vacuum ≤10Pa |
| Vacuum gauge | Resistance gauge + film gauge |
| Pressure control | Working pressure 0.04-0.06Mpa |
| Filter | Vacuum pump equipped with special filter device |
| Pressure gauge | Mechanical pressure gauge |
| Air path | One nitrogen |
| Flow control | Touch screen display |
| Flow range | 500SCCM |
| Control accuracy | ±1.5%F.S |
| Inlet interface | 1 manual valve + 1 solenoid valve |
| Exhaust interface | 1 manual valve |
