model:PT-MZ1100-S350LX3

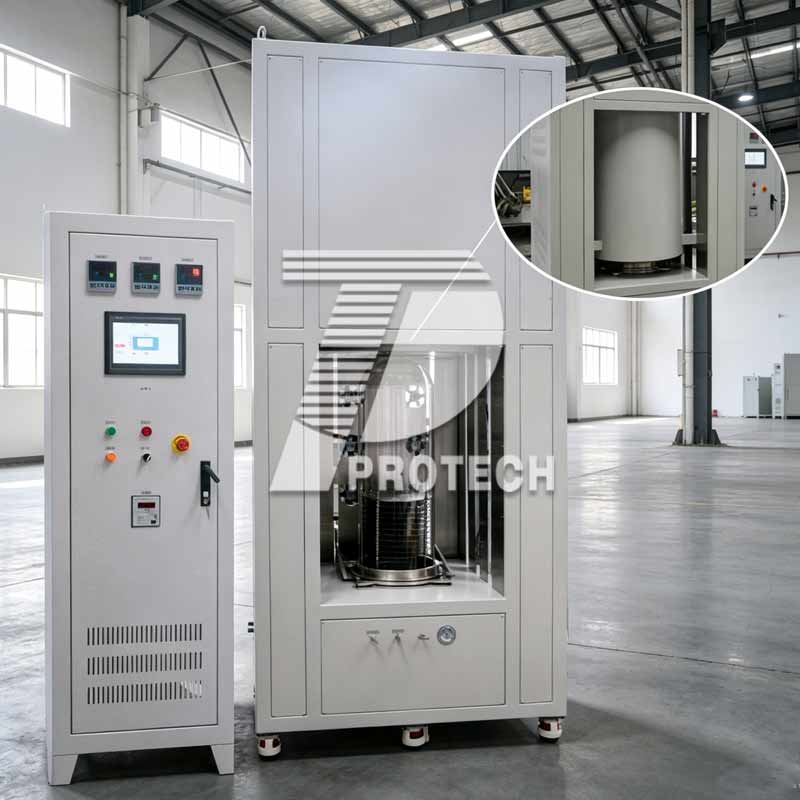

PT-MZ1100-S350LX3 Bell furnace for tool brazing

Application

Detailed Parameters Of The Product

Product description:
The PT-MZ1100 series vertical lifting bell furnace can lift the heating zone, making it easier to deliver and take materials; the welding quality is good, the strength is high, and the stability is strong. The furnace has the advantages of balanced temperature field, low surface temperature, and energy saving.

Application:
Diamond grinding wheels, saw blades, hard tools, ceramics and alloy materials, high vacuum welding, high temperature sintering, annealing, and heat treatment of metal materials.

Features:
1. The heating element adopts high-quality resistance wire, and the furnace insulation material adopts polycrystalline fiber material, which has good insulation performance, durability, high tensile strength, no impurities, high purity, and energy-saving .

2. The entire furnace body adopts a vertical structure with an air gap in the middle. Even if the furnace temperature is as high as 1000℃, the surface of the furnace body can still be safely touched without a hot feeling.

3. The entire furnace body adopts a vertical structure with an air gap in the middle. Even if the furnace temperature is as high as 1000℃, the surface of the furnace body can still be safely touched without a hot feeling.

4. The temperature control system adopts touch screen control, artificial intelligence adjustment, PID adjustment, self-tuning function, 30 sections of temperature rise and fall programs can be compiled, and data can be stored and output.

5. With over-temperature alarm protection function, the operation is safe and reliable.

6. The tubular furnace has reserved air inlet and outlet ports, and a vacuum pump interface is reserved. The vacuum pump can be connected to vacuum.

Technical parameters:

Bell furnace for tool brazing
Model	PT-MZ1100-S350LX3
Furnace tube size	Φ350mmX1300mm，Single-side end cap structure
Vertical heating zone length	Average temperature zone Ø350×500mm
Working temperature	1000℃
Max. temperature	1100℃
Heating method	High-quality alloy heating wire, the heating wire is annularly embedded in the furnace surface
Chamber material	Alumina polycrystalline fiber, good thermal insulation performance
Temperature control method	Multi-stage PID intelligent program temperature control
Control method	LCD touch screen operation, intelligent multi-stage PID programmable control The temperature control system adopts artificial intelligence adjustment technology, has PID adjustment, self-tuning functions and can compile multi-stage temperature rise and fall programs; 1. Use PID to adjust temperature control, and can set multi-stage temperature rise and fall programs 2. Temperature control accuracy ±1ºC 3. Over-temperature protection and broken couple protection. The electric furnace heating circuit is automatically cut off when over-temperature or broken couple is used 4. The instrument has the function of temperature self-tuning 5. Touch screen operation, the temperature rise curve can be displayed in real time, and the data can be output and stored
Heating rate	0-20ºC/min ，10ºC/min is recommended,can be adjusted freely according to the process
Flange seal	Equipped with stainless steel water-cooled flange, the interface is sealed with metal gasket or fluororubber. Ring seal, flange with fastening device, with air inlet and outlet and vacuum pump interface.
Inlet and outlet design	One-in-two-out design
Furnace structure	Vertical structure, electric lifting bell type
Operating voltage	AC 380V single phase 50HZ
Design heating power	40 KW
Total Power	47kw
Gas system
Name	Two-way mass flow meter
Main parameters	Two-channel precision mass flowmeter: touch screen control, digital display, automatic control. Flow range: 1. MFC 1-MFC2: Hydrogen, argon 0-1000sccm/10L adjustable 2. A gas mixing tank 3. 2 stainless steel needle valves are installed on the left side of the gas supply system, and 2 gases can be manually controlled; 4. Inlet and outlet: 2 inlet and 1 outlet Connection method: double ferrule connection
Vacuum system parts
Main parameters	1. The vacuum degree of the vacuum pump can reach 5pa 2. KF25 quick connection, stainless steel bellows, manual baffle valve and flange, connected to the vacuum pump; 3. The resistance vacuum gauge displays
Water Cooling System	Equipped with a water cooler to cool the flange
After-sales service	One-year warranty, lifetime warranty (heating elements, furnace tube consumables and other accessories provided with the device are not covered by the warranty)
