Atmosphere Furnace Sintering of MnZn Ferrite: Atmosphere Control & Troubleshooting

1. Introduction

As a high-performance soft magnetic material, MnZn ferrite is widely used in electronic components such as transformers, inductors, and filters. Its magnetic properties, mechanical performance, and stability depend directly on the rationality of the sintering process. Atmosphere furnaces, with precise atmosphere adjustment capabilities, are the core equipment for MnZn ferrite sintering. Among them, atmosphere control accuracy and sintering parameter matching are key to product qualification rate. This article elaborates on the core process points, atmosphere control logic of MnZn ferrite sintering in atmosphere furnaces, and provides solutions to common process problems in production, offering references for industrial production optimization.

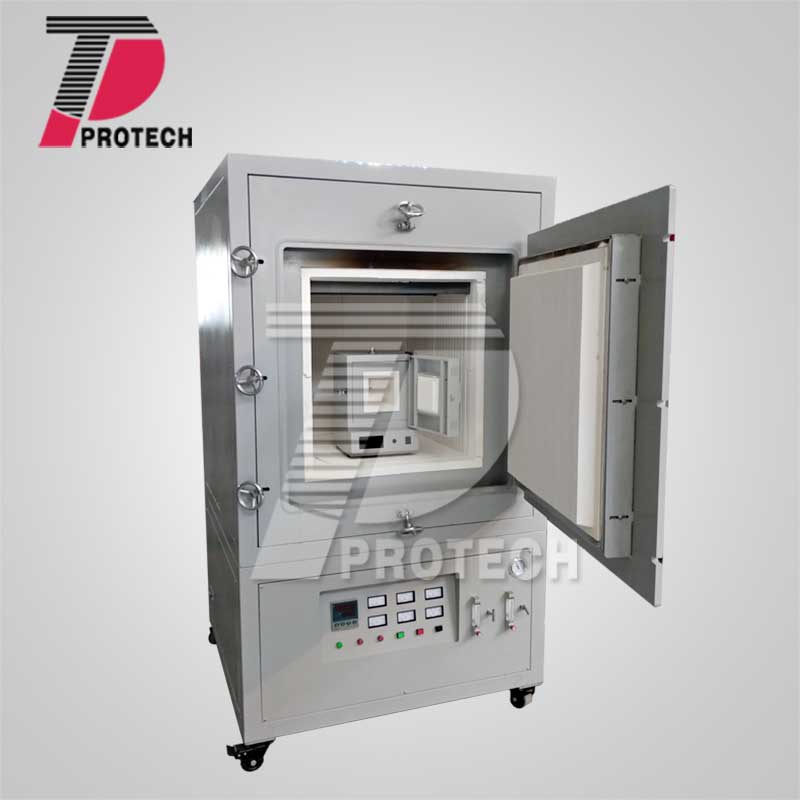

2. Core Process of MnZn Ferrite Sintering in Atmosphere Furnace

2.1 Basic Sintering Principle

The sintering process of MnZn ferrite involves diffusion, fusion, and recrystallization between particles at high temperatures to form a dense, uniform spinel crystal structure. Meanwhile, impurities and pores in the green body are removed, improving material permeability and density. This process is extremely sensitive to the furnace atmosphere; parameters such as oxygen content and CO/CO₂ ratio directly affect crystal growth and ionic valence balance, thereby changing material magnetic properties.

2.2 Key Process Parameters

1. Temperature Curve: The heating rate should be controlled at 5-10℃/min to avoid green body cracking; the holding temperature is stabilized at 1200-1350℃ for 2-4 hours to ensure sufficient crystal growth; the cooling stage requires stepwise regulation—slow cooling in the high-temperature zone (800-1000℃) and appropriate acceleration in the low-temperature zone to reduce internal stress.

2. Atmosphere Parameters: A nitrogen-oxygen mixed atmosphere is used throughout sintering, and oxygen partial pressure is dynamically adjusted according to the stage. In the early heating and holding stages, oxygen partial pressure is controlled at 2%-5% to inhibit iron ion oxidation; it is gradually increased to 8%-12% in the middle holding stage to promote crystal densification; and maintained at 5%-8% during cooling to stabilize ionic valence.

3. Furnace Pressure: Maintain a slight positive pressure (0.02-0.05MPa) to prevent external air infiltration, promote pore discharge from the green body, and improve densification.

3. Key Points of Ceramic Sintering Atmosphere Control

3.1 Atmosphere Regulation Logic

The core of MnZn ferrite sintering is maintaining the valence balance of iron, manganese, and zinc ions through atmosphere adjustment, avoiding ferrous ion defects or excessive oxidation. Atmosphere furnaces must be equipped with high-precision oxygen analyzers and flow controllers to monitor and feed back oxygen partial pressure in real time, realizing closed-loop control of atmosphere parameters by automatically adjusting nitrogen and oxygen intake.

3.2 Atmosphere Control Strategies for Different Stages

1. Preheating Stage (Room Temperature-800℃): Nitrogen-dominated, oxygen partial pressure at 1%-2%, aiming to remove moisture and binders in the green body, while avoiding excessive surface densification caused by low-temperature oxidation that hinders internal gas discharge.

2. High-Temperature Sintering Stage (800-1350℃): Gradually increase oxygen partial pressure. This is a critical period for crystal growth and densification; atmosphere fluctuation should be controlled within ±0.5%, otherwise uneven grain size and reduced permeability may occur.

3. Cooling Stage (1350℃-Room Temperature): Maintain oxygen partial pressure at 8%-10% first, then gradually reduce to 2%-3% when the temperature drops below 800℃, reducing oxidative stress during cooling and avoiding increased material hysteresis loss.

4. Common Problems and Solutions

4.1 Low Product Densification and High Porosity

[Causes]: Insufficient holding time, low furnace pressure, excessive oxygen partial pressure hindering grain growth. [Solutions]: Extend holding time to 3-4 hours, adjust furnace pressure to 0.03-0.05MPa, optimize high-temperature oxygen partial pressure to 8%-10%, and check furnace tightness to prevent air leakage.

4.2 Low Permeability and High Loss

[Causes]: Improper oxygen partial pressure regulation leading to ferrous ion defects or abnormal grain growth; excessive cooling rate causing internal stress. [Solutions]: Optimize the atmosphere curve to stabilize high-temperature oxygen partial pressure, reduce the cooling rate to 2-3℃/min in the 800-1000℃ range, and anneal sintered products (500℃ for 1 hour) to eliminate internal stress.

4.3 Surface Oxidation Discoloration and Cracking

[Causes]: Furnace atmosphere contamination, excessive heating/cooling rate, sudden oxygen partial pressure changes. [Solutions]: Regularly clean the furnace chamber and check air intake pipe purity; reduce heating rate to below 5℃/min and optimize the stepwise cooling curve; replace high-precision flow controllers to ensure oxygen partial pressure fluctuation is within the allowable range.

4.4 Poor Performance Consistency Between Batches

[Causes]: Untimely atmosphere furnace parameter calibration, raw material batch differences, improper loading method. [Solutions]: Calibrate oxygen analyzers and flow controllers weekly to ensure precision; pretreat raw materials for uniform composition; adopt layered loading to avoid excessive stacking, ensuring uniform temperature and atmosphere distribution in the furnace.

5. Conclusion

The core of MnZn ferrite sintering in atmosphere furnaces lies in "precision temperature control + dynamic atmosphere adjustment". It is necessary to optimize process parameters combined with material characteristics and equipment performance, and establish a sound process monitoring and calibration mechanism to effectively solve common sintering problems and improve product performance and qualification rate. With the increasing demand for magnetic properties of electronic components, refined atmosphere control and intelligent process optimization will become the development direction of MnZn ferrite sintering technology, supporting high-quality industrial development.
