Lab Furnaces vs Lab Ovens: Which Do You Need?

Confused between a lab furnace and a lab oven? This guide breaks down the key differences in temperature, application, and design to help you choose the right thermal processing equipment for your lab.

Lab Furnaces vs Lab Ovens: Which Do You Need?

When outfitting your laboratory for thermal processing, one of the most common questions is: do I need a lab furnace or a lab oven? While they might seem similar, these two pieces of equipment are designed for vastly different purposes. Choosing the wrong one can lead to ineffective results, damaged samples, or even safety hazards.

This definitive guide will break down the key differences between lab furnaces and lab ovens, helping you make an informed decision for your specific application.

Key Differences at a Glance: Furnace vs. Oven

The core difference lies in their **maximum temperature and primary function**.

Lab Ovens** are designed for lower-temperature tasks like drying, baking, curing, and sterilization, typically operating up to **300°C**.
Lab Furnaces** (also called Muffle Furnaces) are built for high-temperature applications such as ashing, sintering, and heat treatment, reaching temperatures well over **1000°C**.

What is a Lab Oven?

A lab oven provides uniform, precise temperatures for processes that do not require extreme heat. They use convection heating (gravity or mechanical) to circulate hot air evenly throughout the chamber.

Common Applications of a Lab Oven:
* Drying: Removing moisture from samples, glassware, or other materials.
* Curing: Setting or hardening materials like epoxies and resins.
* Baking: Thermal conditioning of substrates and parts.
* Sterilizing: Eliminating microorganisms from lab equipment (using dry heat).
* Annealing: Stress relieving of plastics or metals at lower temperatures.
* Evaporating: Gently boiling off solvents.

Key Features:
* Max Temperature:** Usually 200°C to 300°C.
* Heating Method:** Convection (air circulation).
* Ventilation:** Often includes vents to allow moisture and vapors to escape.
* Precision:** Excellent temperature uniformity for low-temperature processes.

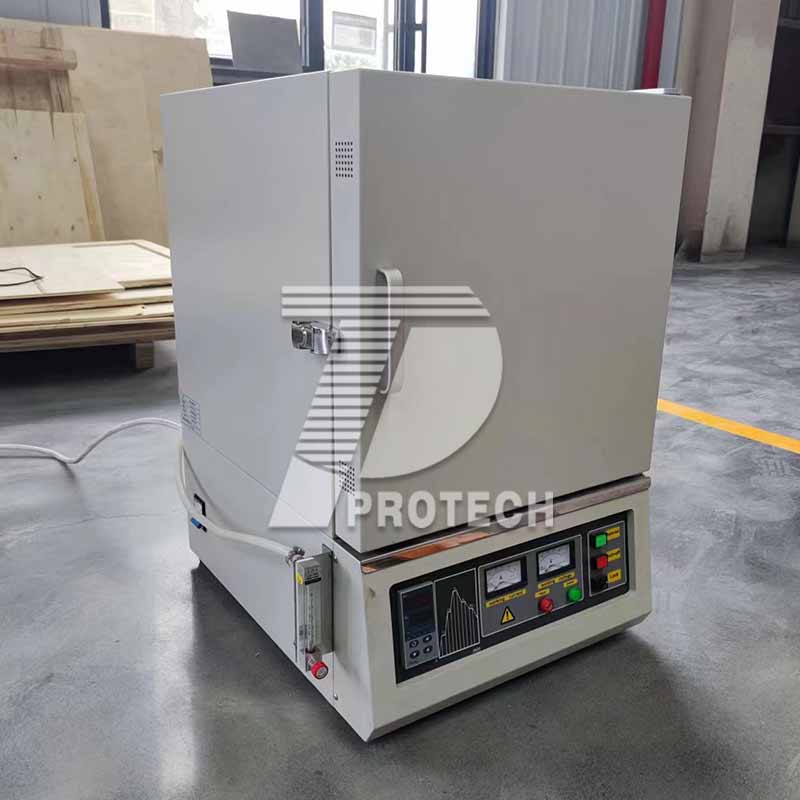

What is a Lab Furnace?

A lab furnace is a high-temperature oven designed for applications where much greater thermal energy is required. They are heavily insulated and often lack air circulation to prevent contamination of samples or to create a specific atmosphere.

Common Applications of a Lab Furnace:
* Ashing:Burning away organic material from a sample to analyze inorganic residue (e.g., in soil science or food testing).
* Heat Treatment:*Hardening, tempering, or annealing metals at high temperatures.
* **Sintering:** Fusing powder-based materials (like metals or ceramics) into a solid mass without melting them.
* **Calcination:** Heating a substance to a high temperature to cause decomposition or phase transition.
* **Loss-On-Ignition (LOI):** Determining the volatile content of a sample.

Key Features:
* **Max Temperature:** Typically 900°C to 1800°C.
* **Heating Method:** Radiant heat from high-resistance elements (e.g., Kanthal). Crucibles are often used to hold samples.
* **Insulation:** Heavy insulation (often ceramic fiber) to contain extreme heat.
* **Atmosphere:** Some models allow for controlled environments (inert gas, vacuum).

| Feature | Lab Oven | Lab Furnace |
| **Primary Use** | Drying, Curing, Sterilizing | Ashing, Sintering, Heat Treating |
| **Max Temperature** | Up to ~300°C | 900°C to 1700°C+ |
| **Heating Method** | Convection (Air) | Radiant / Chamber Atmosphere |
| **Typical Samples** | Glassware, Plastics, Biologicals | Metals, Ceramics, Minerals, Ash |
| **Ventilation** | Vented to release moisture | Sealed or controlled atmosphere |
| **Insulation** | Moderate | Heavy, High-Duty |
