Detailed explanation of vacuum furnace technology and application

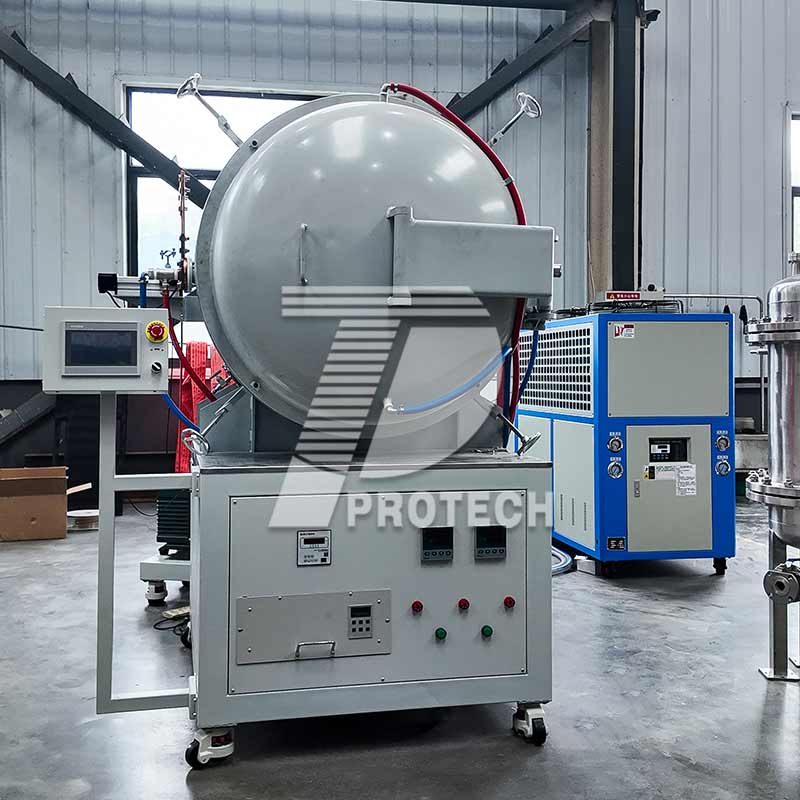

1. Definition and basic structure of vacuum furnace

A vacuum furnace is an industrial heating equipment that uses a vacuum system to reduce the pressure in the furnace chamber to below the standard atmospheric pressure to form a vacuum environment. Its core components include sealed furnace shell, furnace chamber, vacuum system and temperature control system, which are specifically composed as follows:

Core components

Function description

Sealed furnace shell is welded with carbon steel or stainless steel, and is cooled by water or air to prevent deformation. The joint surface uses vacuum sealing materials

Furnace chamber has built-in heating elements (such as resistors, induction coils), and can be equipped with crucibles, automatic pouring devices, etc. according to the purpose

Vacuum system consists of vacuum pump, vacuum valve and vacuum gauge to realize vacuum control in the furnace

Temperature control system has an accuracy of ±1.5℃, supports multi-stage program heating and automatic adjustment

2. Working principle of vacuum furnace

Vacuum furnace uses the dual mechanism of heat transfer of heat medium water phase change and isolation of vacuum environment to achieve efficient heating:

The heat of fuel combustion is absorbed by heat medium water, and evaporates into saturated steam to complete the first phase change;

Steam condenses and releases heat in the U-shaped heat exchanger, and water flows back to the evaporation chamber for recycling;

The vacuum system continuously extracts non-condensable gas to ensure heat exchange efficiency.

3. Main types and application areas

3.1 Classification by process use

Vacuum quenching furnace: used for rapid cooling and hardening of metal materials, widely used in aerospace parts;

Vacuum brazing furnace: achieves precision welding at a temperature lower than the melting point of the base metal, such as carbide tool production;

Vacuum sintering furnace: suitable for metal powder sintering and forming, typical applications include 3D printing of titanium alloy parts;

Laboratory vacuum furnace: miniaturized equipment, used for research and development experiments of bioceramics and special alloys.

3.2 Classification by cooling method

Air-cooled vacuum furnace: uses inert gas to quickly cool down, suitable for precision parts that require uniform cooling;

Oil-quenched vacuum furnace: achieves extremely fast cooling through quenching oil to increase material hardness.

4. Technical advantages and industry value

Environmentally friendly: no need for three wastes treatment, in line with modern industrial environmental protection requirements;

Precise temperature control: furnace temperature uniformity can reach ±5℃ (under rarefied gas atmosphere), improving product consistency;

Energy saving and high efficiency: high-quality insulation materials make energy consumption significantly lower than traditional salt bath furnaces;

Automation integration: support process parameter preset and automatic execution, reducing manual intervention.

5. Selection and maintenance points

5.1 Key indicators for selection

Vacuum range: low vacuum (1333~2Pa), medium vacuum or high vacuum system on demand;

Heating power: determined according to the volume of the workpiece to be processed and the heating rate;

Cooling system: air cooling is suitable for small and medium-sized parts, and oil quenching is suitable for large and heavy-loaded workpieces.

5.2 Daily maintenance focus

Regularly check the sealing performance of O-rings;

Clean vacuum valves and pipelines to prevent impurities from clogging;

Monitor the state of heat medium water to avoid a decrease in phase change efficiency.

VI. Industry Development Trends

Currently, vacuum furnace technology is developing towards ultra-high vacuum (<10⁻⁵Pa), intelligent control (AI adaptive adjustment) and modular design. Taicang Huarui, Shandong Paijin and other companies have launched multi-station integrated equipment that can simultaneously complete composite processes such as quenching and tempering, significantly improving production efficiency. In the field of new energy materials, the application of vacuum sintering furnaces in the preparation of solid-state battery electrodes has become a new growth point.
