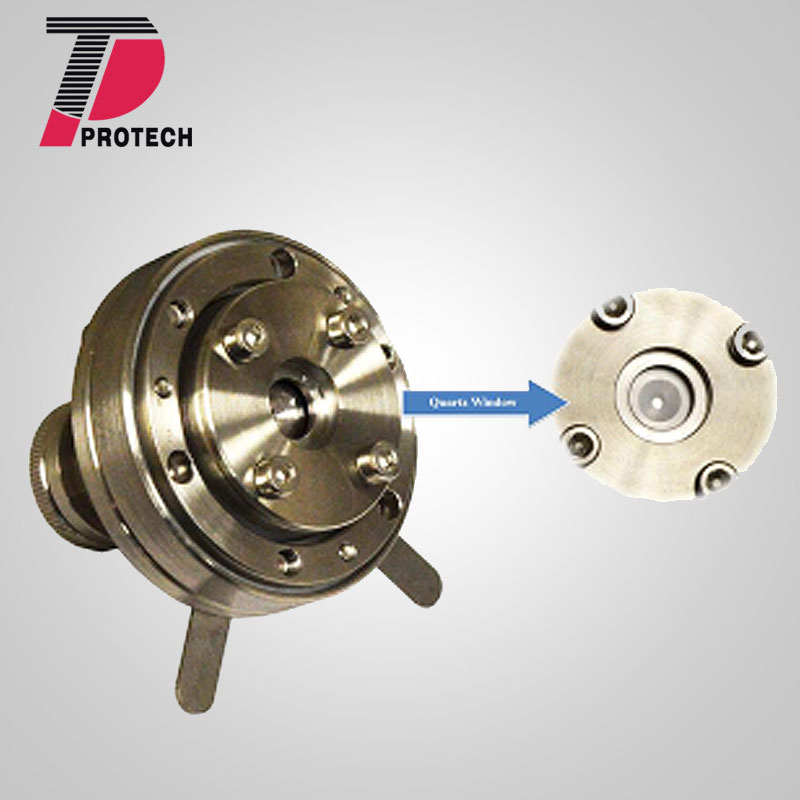

PT-STC-QW split-able test cell is designed for R&D of rechargeable battery material. A 16.8mm diam. quartz window on its bottom allows in-situ X-Ray analysis of battery material phase transition during charging and discharging. Such a cell can accept various sizes (19, 20, and 24mm diameter) of electrodes and separators and test the electrodes easily and quickly.QrtMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Structure |
Full stainless steel SS304 |
Max. Cell Thickness |
6mm (cathode+separator+anode) |
Features |
Electrolyte corrosive-proof PTFE Guide Sleeve capable of withstanding up to 250 ºC. (19, 20, and 24 mm diam. are available. Please select the size at option bar.) QrtMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Sealed by electrolyte corrosive-proof PTFE O-rings.QrtMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
A 6mm height spacer inside the test cell to press down on the electrode and prevent the electrode from curling.QrtMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Small enough to be put in and taken out from a glove box.QrtMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Easy to separate and clean after testing.QrtMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Same functionality to "Swagelok Coin Cell" but with more size options for electrode and separator and also the proper dimensions for glove box compatibility. |
Quartz Observation Window |
Diameter = 10.1mm Quartz Observation Window allows the X-Ray beam penetration. QrtMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Thickness = 1.92mmQrtMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Recessed Spacing = 6.00 mm |
Max. Working Temperature |
200ºC |
Optional |
Please select the inser size in the option bar. 10, 12, 15, 19, 20, and 24 mm diameter inserts are available.QrtMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Anti-crossive Au coating on the cell internal and inserts is an option. $396 surcharge will apply. |
Max. Cell Thickness |
Cathode+separator+anode: 6mmQrtMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
|
