model:PT-M1400-A4IL

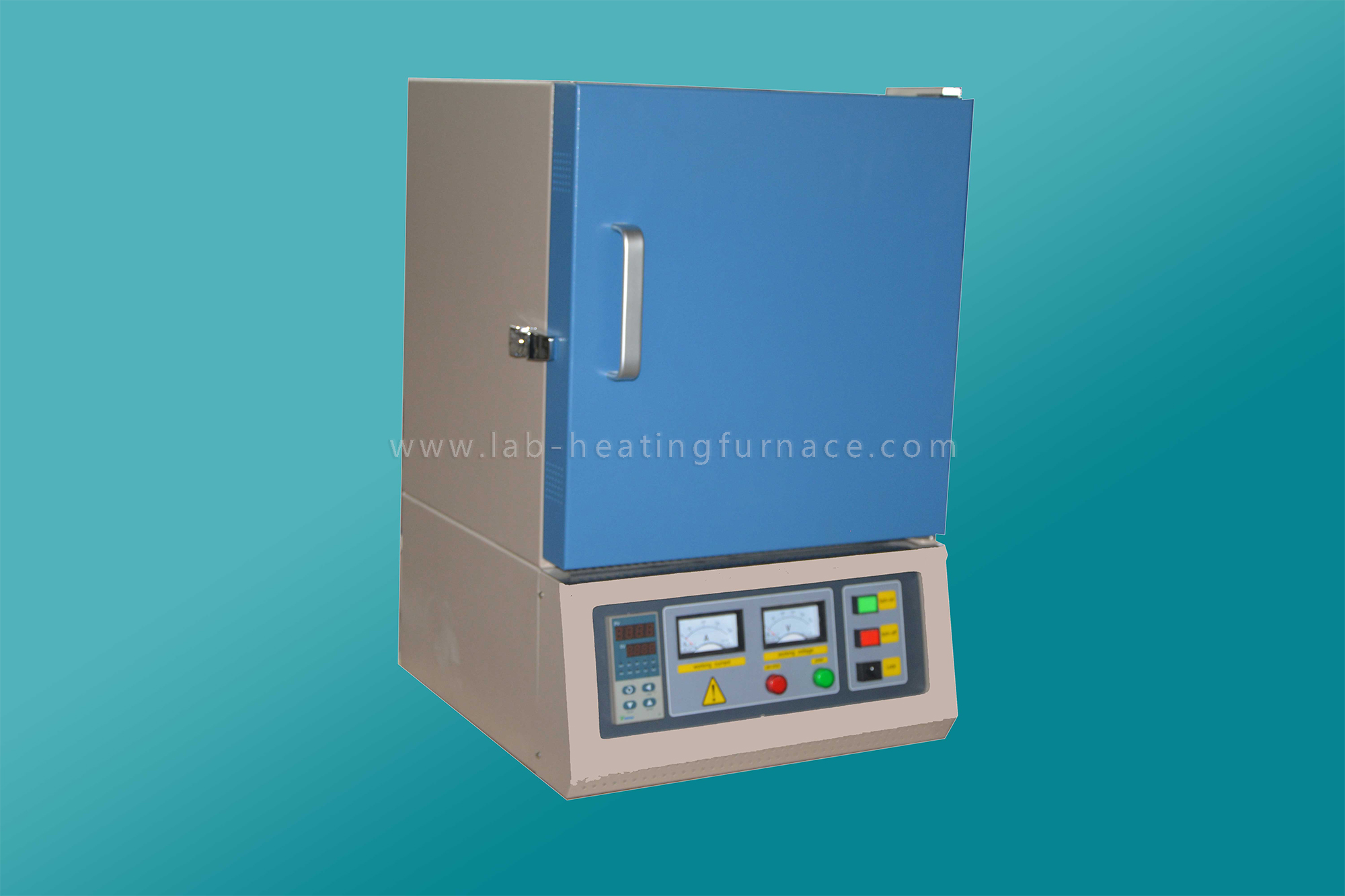

1400C Touch screen Lab Muffle furnace

Application

Contact us for customize send-email: info@lab-furnace.com

Detailed Parameters Of The Product

Description：
Unique touch screen system make the control more accurate and graphic interface more convenient.This series lab muffle furnace can be widely used in universities, research institutes,industrial and mining enterprises for high temperature sintering,materials sintering,composition analysis，quality testing and related heating treatment work.

1.Features of Lab Muffle furnace

(1).The unique touch screen control system, and make the control more accurate graphic interface
convenient operation

(2).Adopted the SIC heating element.

(3).Furnace with high purity alumina fiber materials produced through unique technology, heat
preservation performance outstanding thus reducing power consumption by 30%

(4).Can be equipped with computer software interface, through the computer PC global monitoring
and operation

We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!

2.Technical parameters of Lab Muffle furnace :

Model	PT-1400M
Chamber model	Side Door
Display	Touch Screen (LED)
Limiting temperature	1400℃
Working temperature	≤1350℃
Heating rate	Suggestion 0~10℃/min
Temperature accuracy	±1℃
Inside chamber Size	200×200×300(mm）
Heating element	SiC
Thermal couple	S Type
Temperature control	PID automatic control via SCR power control
Heating curves	30 steps programmable
Chamber material	Alumina Fiber
Rated power	6KW
Working voltage	AC 110-480V 50-60Hz
Warranty	12 month (exclusive wearing part)
