model:PT-V1600-16Y

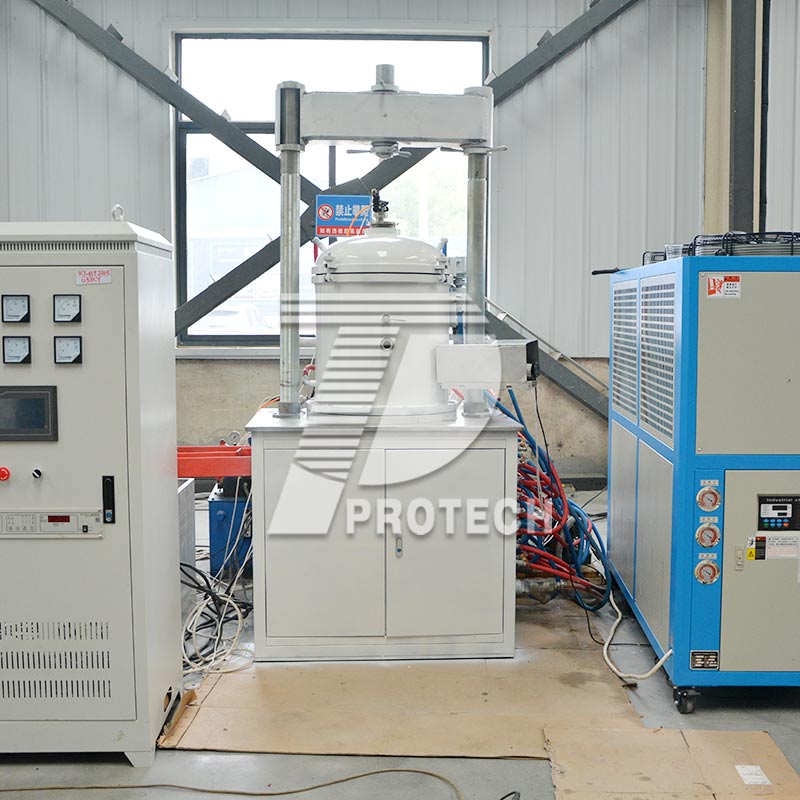

PT-V1600-16Y vacuum hot press furnace
Application: The equipment has the functions of automatic pressurization, automatic pressure stabilization and pressure maintaining during pressure sintering. The imported pressure regulator has reliable performance and is equipped with a speed regulating valve to adjust the pressurization speed.
Contact us for customize
send-email:
info@lab-furnace.com
Detailed Parameters of the Product
o2zMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacProduct introduction:o2zMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
o2zMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The furnace supports automatic pressurization, pressure stabilization and constant pressure maintenance throughout the pressure sintering process. Fitted with an imported high-reliability pressure regulator and speed control valve, it allows stepless adjustment of pressurization speed. With digital signal output and strong anti-interference capability, the system ensures stable and accurate pressure control during continuous operation.o2zMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
o2zMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
It adopts a thyristor voltage regulator and high-current transformer, paired with a Fuji PID digital display programmable instrument and built-in overtemperature alarm function, realizing interlocked protection for both manual and automatic control modes. The whole system is driven by a PLC programmable controller. The control panel is fully equipped with current, voltage, temperature, vacuum and water pressure monitoring instruments, electrical interlock devices, as well as sound and light alarm modules. All core electrical components adopt Delixi brand, and the electric control cabinet is manufactured in strict accordance with standardized industrial specifications, delivering convenient operation and high-precision temperature control performance.o2zMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnaco2zMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
o2zMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacApllication:o2zMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnaco2zMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacThis furnace covers a wide range of high-precision processing scenarios across multiple industries. In powder metallurgy, it is ideal for manufacturing high-performance structural parts including gears, cams and cutting tools. In functional ceramic industry, it supports the preparation of transparent ceramics, piezoelectric ceramics, thermistor ceramics and other advanced functional ceramic materials. For metal material processing, the equipment is applicable for hot pressing, diffusion bonding, powder forging and other precision forming processes. In the semiconductor field, it performs professional sintering, annealing and epitaxial growth treatment for semiconductor materials, effectively enhancing the overall performance and operational reliability of semiconductor devices.o2zMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnaco2zMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnaco2zMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacTechnical parameters:
| Model |
Effective heating area sizeo2zMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(width * height * depth/mm） |
Maximum temperature(℃) |
Ultimate vacuum(pa) |
Temperature uniformity(℃) |
Pressure rise rate(Pa/h) |
Press pressure（T） |
| PT-V1600-16/16L |
Φ160*160 |
1600 |
6.67*10-3 |
±5 |
≤0.67 |
＜20 |
| PT-V1600-20/20L |
Φ200*200 |
1600 |
6.67*10-3 |
±5 |
≤0.67 |
＜25 |
| PT-V1600-25/30L |
Φ250*300 |
1600 |
6.67*10-3 |
±5 |
≤0.67 |
＜30 |
| PT-V1600-35/40L |
Φ350*400 |
1600 |
6.67*10-3 |
±5 |
≤0.67 |
＜35 |
| PT-V1600-45/50L |
Φ450*500 |
1600 |
6.67*10-3 |
±5 |
≤0.67 |
＜40 |
