model:PT-VS1700-12CWG

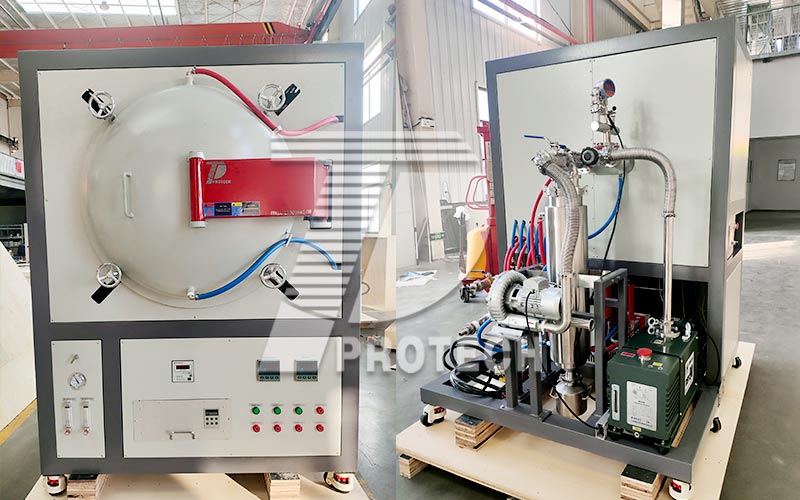

PT-VS1700-12CWG Graphite vacuum furnace

Application

Detailed Parameters Of The Product

Introduction:
Protech PT-VS1700-12CWG model vacuum furnace is widely used for heat treatment of metal materials in high vacuum, recursive, protective atmosphere, also can be used for heat treatment of special materials such as carbonization fiber with excellent thermal insulation.

Technical Parameters：

Furnace model	PT-VS1700-12CWG
Structure	Outside shell: 1, Carbon steel 2, Double-layer with water running in to keep low temperature. Insulation layer: Graphite felt.
Chamber dimension	200x200x300 mm
Thermocouple	B-type thermocouple
Heating element	Graphite board.
Working temp.	1700 deg.C
Heating rate	0-20℃/min (Suggestion: 0-10℃/min)
Temp. accuracy	+/-1℃
Temp. control	Screen control (16 temperature curves can be stored.) 16-segment Programmable controller PID automatic controller Broken thermocouple protection and automatic over heating protection alarm
Vacuum pump system	Rotatory vane vacuum pump Power 3kw Pumping speed 30L/S Ultimate degree 6×10(-2)pa
Vacuum pump system	Diffusion vacuum pump Power 4.5kw Pumping speed 2000L/S Ultimate degree 7×10(-5)pa
Vacuum gauge	Composite Vacuum Gauge Measure range 1.0×105～1.0×10(-5)Pa
Cooling system	Industry chiller for outside shell and vacuum pumps Industry chiller is optional at extra costs and you can just use a water pump and a pool.
Power	8 KW
Power supply	380V, Three phase, 50/60Hz(Customized).
Warranty period	1 year
