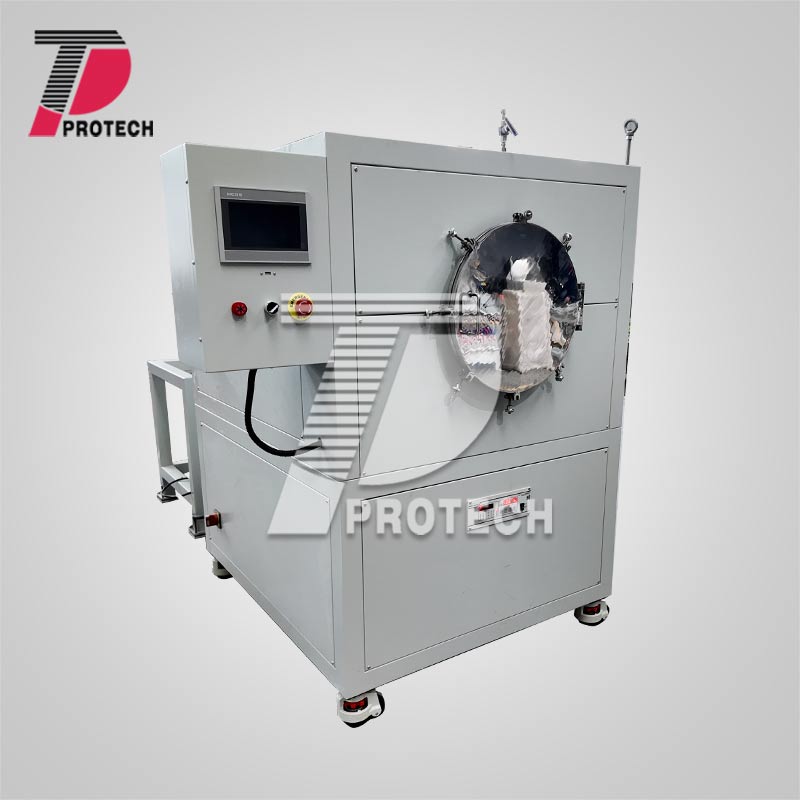

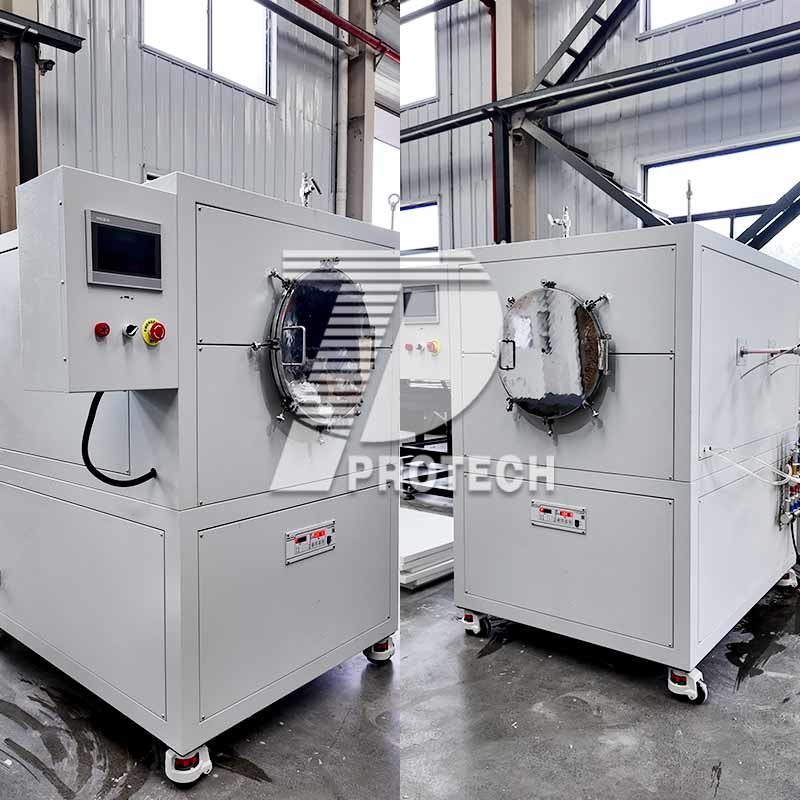

Hot wall external heating vacuum furnace
model:PT-TG1000-H350LK2

Hot wall external heating vacuum furnace

    Application:   It is mainly used for bright annealing of high-speed steel, die steel, tool steel, alloy steel, titanium alloy and other materials after quenching, eliminating residual internal stress after quenching of forgings, welded parts, cold stamping parts, and workpieces, and preventing deformation and cracking of workpieces.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
p67Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Introduction:p67Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
This external heating vacuum furnace is also called a hot wall vacuum furnace. It is mainly composed of a furnace tank, heating elements, insulation materials, furnace doors, exhaust systems, temperature control systems and other parts. The furnace tank is made of alloy, has good sealing performance and high temperature resistance, and can withstand a certain pressure; The vacuum system uses a mechanical pump, a diffusion pump group, a high vacuum butterfly valve, a vacuum gauge, a vacuum vent valve, a vacuum pipeline, etc., and has a charging interface. In order to reduce the vibration of the furnace body, a metal bellows is used to connect the vacuum pipeline to the pump, and the vacuum measurement is measured by a composite vacuum gauge. This vacuum furnace is suitable for high-temperature hot forming of new materials such as powder metallurgy, functional ceramics, silicon carbide, and alumina. It is mainly used for bright annealing of high-speed steel, die steel, tool steel, alloy steel, titanium alloy and other materials after quenching, eliminating residual internal stress after quenching of forgings, welded parts, cold stamping parts, and workpieces, and preventing deformation and cracking of workpieces.p67Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
 p67Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Application:p67Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Externally heated vacuum furnace is a common heat treatment equipment, widely used in the following fields:p67Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
p67Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Material vacuum sintering: used for vacuum sintering of ceramic materials, single crystal silicon, polycrystalline silicon, ruby, silicon carbide and silicon nitride, powder metallurgy (pressing and MIM), cemented carbide, and other metals and alloy materials composed of refractory metals.p67Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Vacuum brazing: used for vacuum brazing and annealing of rare earth permanent magnet alloys, carbides, metal ceramics, stainless steel, titanium and titanium alloys, and high-temperature alloy parts.p67Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Metal heat treatment: used for high-temperature brazing, sintering, tempering, annealing and other processes of stainless steel, copper, titanium alloy, cemented carbide, high-temperature alloy and other materials.p67Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
 p67Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Features:
  1. Compared with the internal heating vacuum furnace, the external heating vacuum furnace has a simpler structure, lower manufacturing difficulty and cost.
  2. There is no vacuum discharge problem in the external heating vacuum furnace. The heating element is isolated from the workpiece, avoiding the risk of workpiece damage or safety accidents caused by heating element failure. It is safe and environmentally friendly.
  3. Equipped with a high-performance vacuum system, including vacuum pumps, vacuum pipes, vacuum valves and other components, it can quickly and effectively extract the air in the furnace. A higher vacuum level can be achieved by selecting different vacuum pump.
  4. Equipped with PID temperature control system, combined with high-precision thermocouple temperature measurement, it can accurately measure and control the temperature in the furnace, with a temperature control accuracy of ±1°C, ensuring that the material.
p67Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
p67Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

p67Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Technical parameter:
Model  PT-TG1000-H350LK2
Long-term working temperature ≦1000℃
Liner material Stainless steel liner can withstand high temperature and high pressure
Diameter φ100-600mm
Heating zone Customized according to your needs
Temperature Control System PID control and self-tuning adjustment, intelligent 30-segment programmable
Temperature control accuracy ±1℃
Temperature protection With over temperature and burnout protection function
Heating rate 0-10℃/minute
Heating element Resistance wire/Silicon carbon rod
Pressure relief protection Equipped with a pressure relief valve, when the pressure of the atmosphere inside the furnace is too high, it can automatically deflate for protection
Sealing system The furnace door is sealed with high-temperature silicone rubber, and the furnace has an air inlet and an air outlet to allow gas to pass through.p67Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Vacuumable.
Furnace material High purity alumina refractory fiber
Operating Voltage AC 220/380V 50HZ (Customized on your needs)
Temperature measuring element N-type thermocouple temperature measurement
Furnace structure Vertical, double-layer air-cooled structure
Way of opening the door side door
Furnace door structure Double-layer water-cooling structure to protect the sealing and reduce the temperature of the furnace door (the buyer of the water-cooler should prepare it by himself)
Cooling system Equipped with circulating water, cooling furnace door and vacuum pump
Vacuum system Rotary vane pump + diffusion pump unit
Ultimate vacuum 10-1000pa/6.67*10-3pa/1-10pa
Vacuum display Composite digital display vacuum gauge
Vacuum valve fittings Vacuum bellows, high vacuum butterfly valve, vacuum gauge, etc. constitute the vacuum system
 Warranty The warranty period is 15 months from the date of delivery or 12 months from the customer's acceptance, whichever comes first (except for consumables and man-made damage); beyond the warranty period, the supplier will continue to provide the accessories required by the buyer and technical services, and charge the actual expenses incurred.
