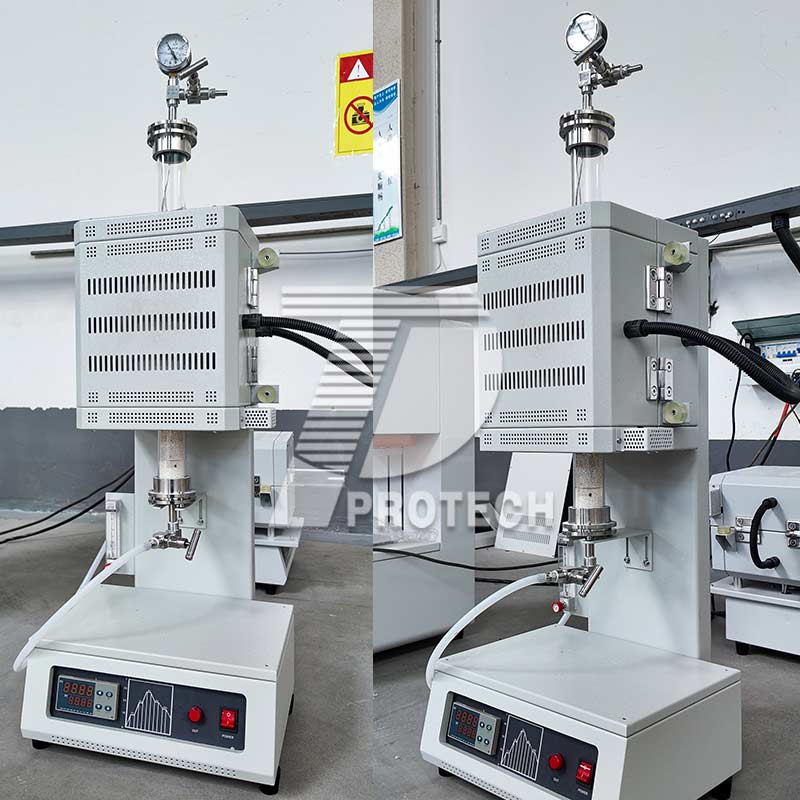

| Model | PT-T1200-S50 |
| Furnace structure | Double-layer shell structure, equipped with cold air system to automatically cool down the furnace shell temperature does not exceed 45 ℃ |
| Furnace material | The high-quality high-purity alumina polycrystalline fiber curing furnace formed by Japanese technology vacuum adsorption has good thermal insulation performance, high reflectivity and balanced temperature field. |
| Max.temperature | 1200℃ |
| Continuous working temperature | ≤1100℃ |
| heating rate | Recommended ≤10℃/min, the fastest heating rate is 20℃/min |
| Furnace tube material | High Purity Quartz Tube |
| furnace tube size | OD:60mm*ID:54mm* 长600mm (Can be customized according to customer needs) |
| Heating zone length | 200mm (Can be customized according to customer needs) |
| flange | Stainless steel sealing flange, easy to disassemble, precision needle valve is installed on the flange |
| Temperature Control System | The temperature control system adopts artificial intelligence adjustment technology, with PID adjustment and self-tuning functions, and can compile 30-stage heating and cooling programs; 1. Using PID mode to adjust temperature control, 30 sections of heating and cooling programs can be set 2. Temperature control accuracy ±1ºC 3, with over-temperature protection, broken couple protection 4. The instrument has the function of temperature self-tuning |
| Heating element | Molybdenum alloy resistance wire |
| Temperature measuring element | Type N thermocouple |
| Air inlet and outlet | Flange contains precision needle valve, air inlet and outlet |
| Rotation angle | The furnace can be rotated 180° |
| The standard configuration | 1 main unit, 1 pair of sealing flanges, 1 quartz tube, 4 sealing rings, 2 furnace plugs, 1 crucible hook, 1 pair of high temperature gloves, 1 manual, 1 certificate of quality warranty card |
| After-sale warranty: 1. Our company provides a one-year warranty service for the supplied equipment (except for wearing parts). During the warranty period, any equipment damage or failure caused by the equipment quality will be repaired free of charge. After the warranty period expires, life-long, high-quality maintenance services are still provided. In the event of equipment failure during the use of the equipment, the user can notify the maintenance needs by telephone, writing, fax, e-mail or other means, and our company will make a solution as soon as possible to ensure the normal operation of the equipment. 3. Our company provides free equipment operation training and simple troubleshooting and maintenance training. To ensure that the user can skillfully carry out standardized and safe operation of the product, can deal with general faults and routine maintenance and maintenance of the equipment, and ensure the normal use of the equipment. 4. Our company's technicians can provide door-to-door service (product installation and debugging, whole machine maintenance, technical explanation and operation guidance, etc.). Our company's technical consultants can answer customers' questions about technology and standard specifications and provide technical guidance at any time. 5. The company can provide transportation services, and the packaging methods are in accordance with standard safety packaging. Complete random technical information (user manual, warranty manual, related information and accessories, random tools, etc.). |
|
