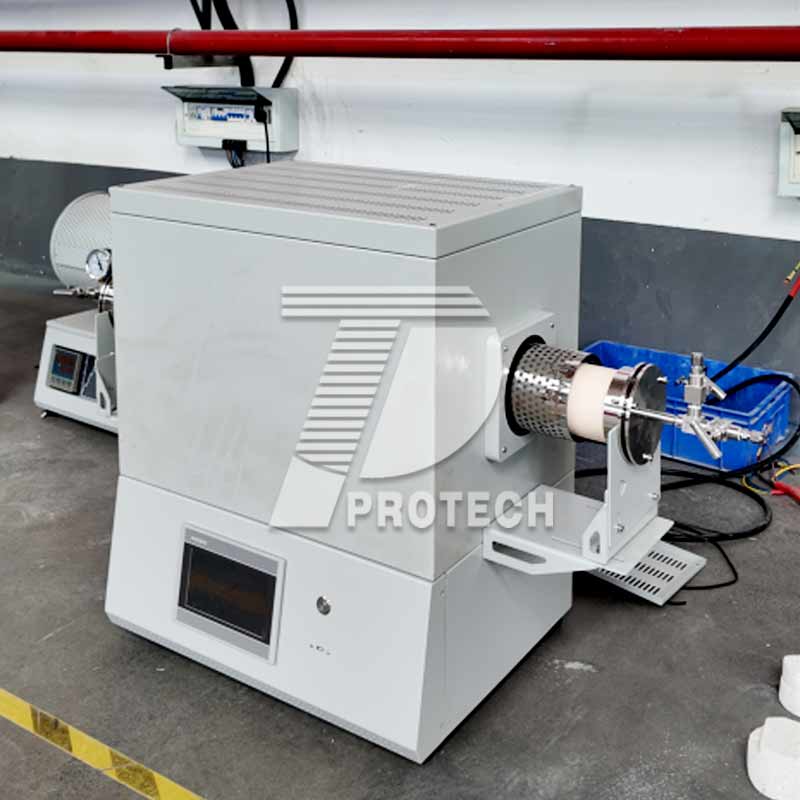

LCD Touch Screen PT-T1600 Tube Furnace
model:PT-T1600

LCD Touch Screen PT-T1600 Tube Furnace

    Application:  LCD Touch Screen PT-T1600 Tube Furnace is widely used in a variety of reaction temperature at about 1600C for CVD experiments; may also be used for vacuum sintering, atmosphere protection vacuum sintering,preparation of nanophase materials, batteries materials,etc.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Brief Introduction:c0yMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
LCD Touch Screen PT-T1600 Tube Furnace is widely used in a variety of reaction temperature at about 1600C for CVD experiments; may also be used for vacuum sintering, atmosphere protection vacuum sintering,preparation of nanophase materials, batteries materials,etc.c0yMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
 c0yMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The main features are as below:c0yMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
1. Great temperature uniformity.c0yMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2. Over temperature protection and alarmc0yMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3. PID automatic control via SCR power controc0yMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
 c0yMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Technical Parameter:
Model PT-T1600
Tube Furnacec0yMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
 		 Display LCD Touch Screen
Max. Temp. 1600℃
Temp. ≤1500℃
Heating Rate Suggestion: 0~10℃/min
Temperature Zone Single Zone 300mm
Heating Element MoSi2
Thermocouple B type
Temperature Control Accuracy ±1℃
Tube Size 1 qty OD 60mm  Alumina Tube
Temperature Control PID automatic control via SCR power control
Heating curves 30 steps programmable
Vacuum Flange Stainless Steel vacuum flange with valve
Power 220V, 50 Hz, single phase at max. 4KW
Warranty One year limited warranty (Consumable parts such as heating elements and alumina tube are not covered by the warranty)
