model:PT-TX1300-L100LK3W

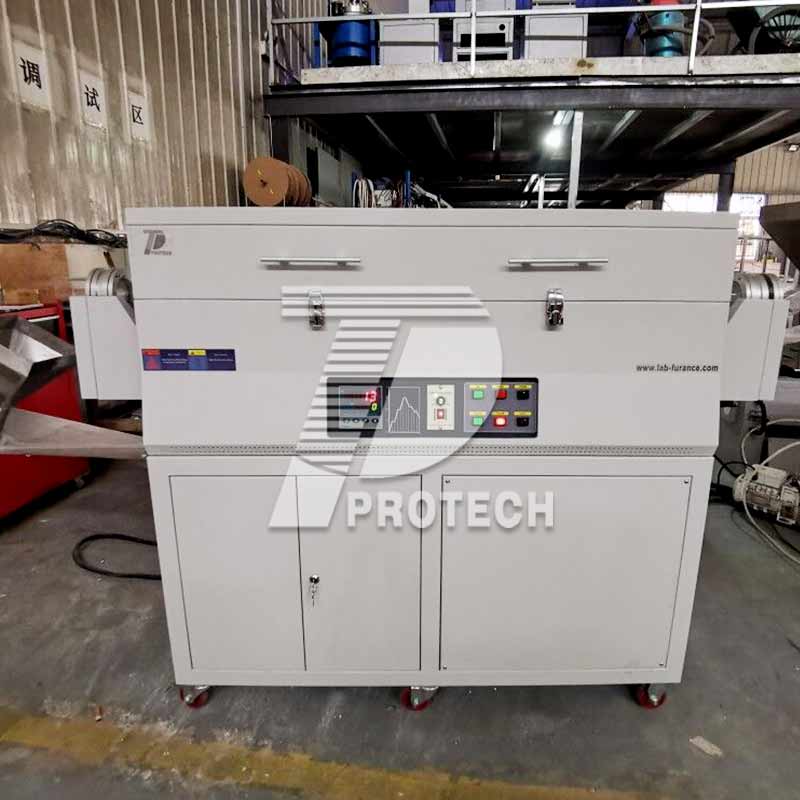

New type rotary tube furnace

Application

Detailed Parameters of the Product

Introduction:

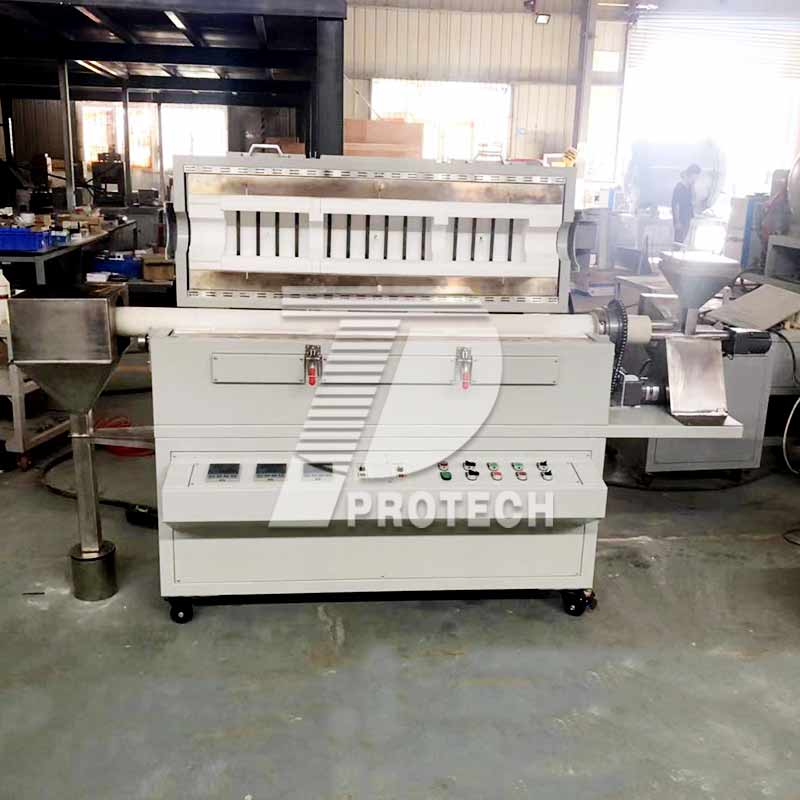

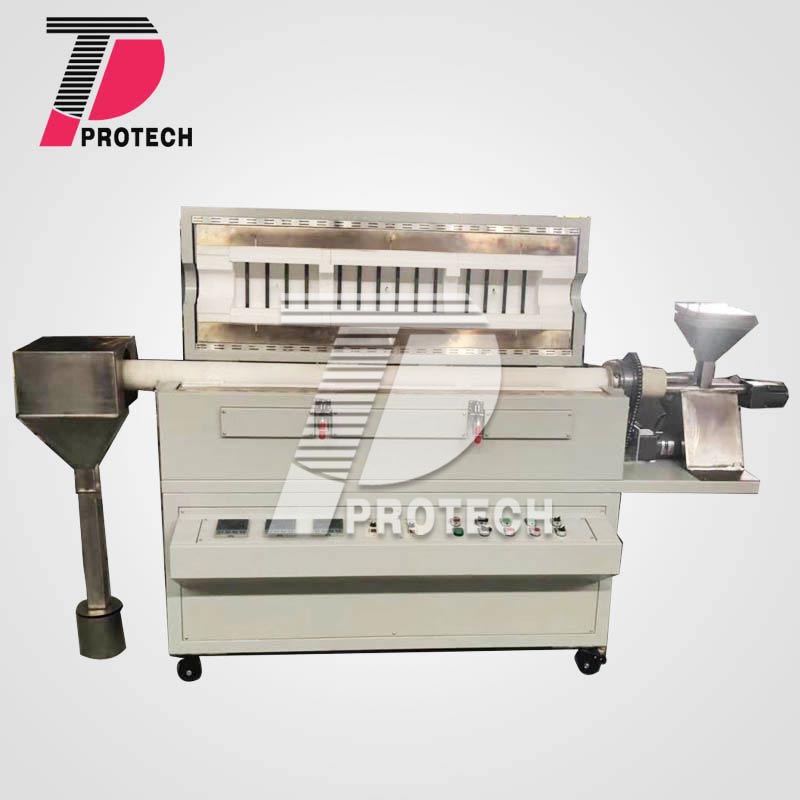

Rotary tube furnace is a high temperature reactor with special rotary and tilt function. It is specially designed for sintering of inorganic compound, such as, mineral particles and battery material and with better uniformity. Multi heating zone, condenser and tail gas collect equipment can be optional part according to different experiment.

Technical Parameter:

Model	PT-TX1300-L100LK3W
Display	LED (LCD Can be customized according to customer needs)
Max. Temperature	1400℃ Max for < 1 hours
Working Temperature	≤1300℃
Heating Rate	Suggestion 0~10℃/min
Temperature Zone	300+400+300 mm 3 hot zones (Can be customized according to customer needs)
Temperature Control Accuracy	±1℃
Tube Diameter	Ф100 mm (Can be customized according to customer needs)
Tube Material	Alumina tube
Tube sealing	One side of tube is with feeder The other side is with outlet
Heating Element	Sic heating elements
Tube Rotating Speed	0-10 RPM
Furnace Tilt Angle	0~5℃
Thermocouple	S Type
Temperature Control	PID automatic control via SCR power control
Heating curves	30 steps programmable
Chamber material	Alumina Fiber
Warranty	One year limited warranty (Consumable parts such as heating elements and alumina tube are not covered by the warranty)
