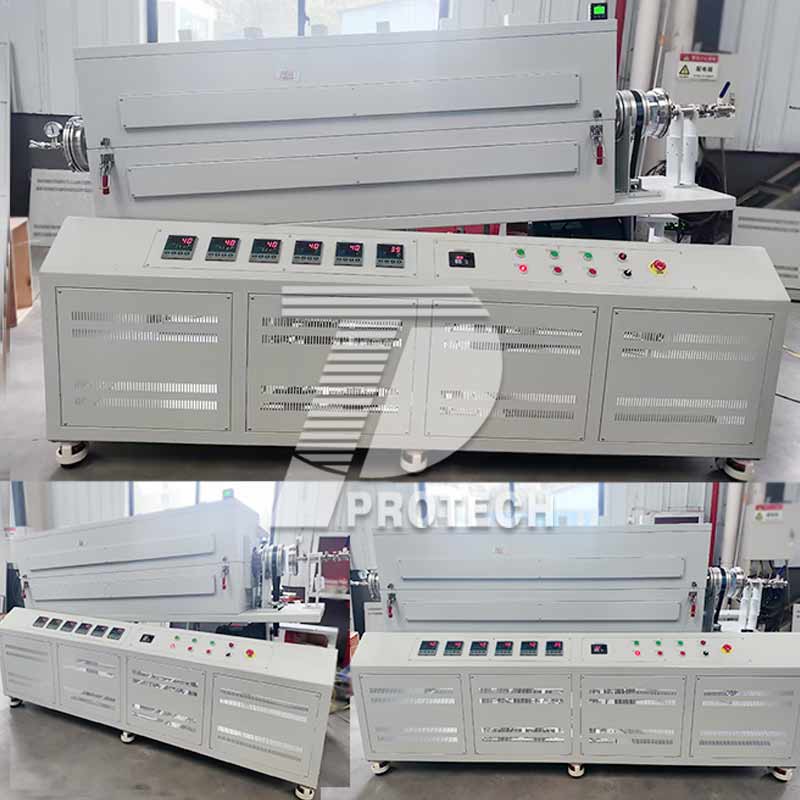

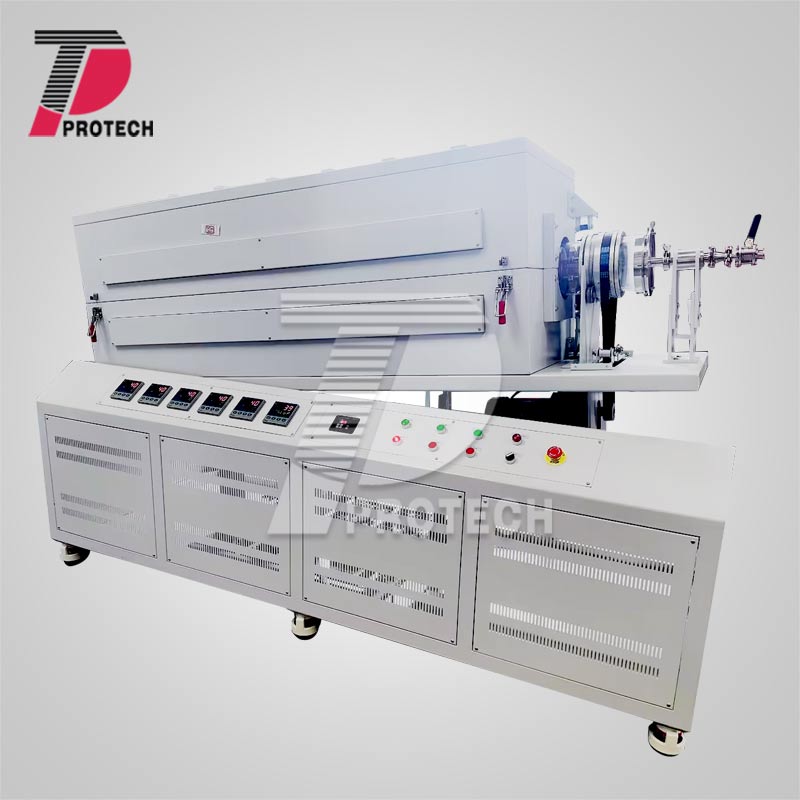

| Model | PT-RT1000-166(1500) Rotary tube furnace | |
| Standard Parts heating | ||
| Heating Furnace | Furnace Feature |
|
| Display | LED Display with independent control | |
| Furnace door design | Split type, electric opening mode | |
| Max Temperature | ≤1100℃ | |
| Continuous Working Temp. | ≤1000℃ | |
| Cooling system | Air-cooling system | |
| Tube Material | Quartz Tube | |
| Tube size | 166mm(Otter diameter) | |
| Tube length | 2000mm (Base on final design) | |
| Tube Baffle Design | There would be some tube paddle setting inside the tube for better mix the material, paddle amount base on final design.. | |
| Hot zone amount | 6 zones | |
| Hot zone length | 250×250×250×250×250×250mm | |
| Heating element | SIC Rod (For easy maintenance) | |
| Chamber Material | Alumina Fiber | |
| Heating Rate | 0-10℃/min | |
| Thermocouple | N type | |
| Mobile box | The furnace is designed with removable type | |
| Temperature Control |
● PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor. ● 30 programmable segments for precise control of heating rate, cooling rate and dwell time. ● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. |
|
| Safety Element | Over-temperature alarm Over-current protection Thermocouple broken indication |
|
| Power Supply | 380V, 50Hz, 3 phases | |
| Output Power | Base on final design | |
| Tilting Angle | 0-5℃(An extra protractor will be made on the furnace, that would be easy for setting the tilting angle you need) | |
| Tube rotating Speed | 1-3rpm | |
| Material Feeding Design | Feeding by Manually | |
| Material Discharge Design | Tilting for remove the material | |
| Flange Design |
|
|
| Warranty | One year limited warranty&lifetime technical support (Consumable parts such as heating elements are not covered by the warranty) | |
