model:PT-T1000-R200

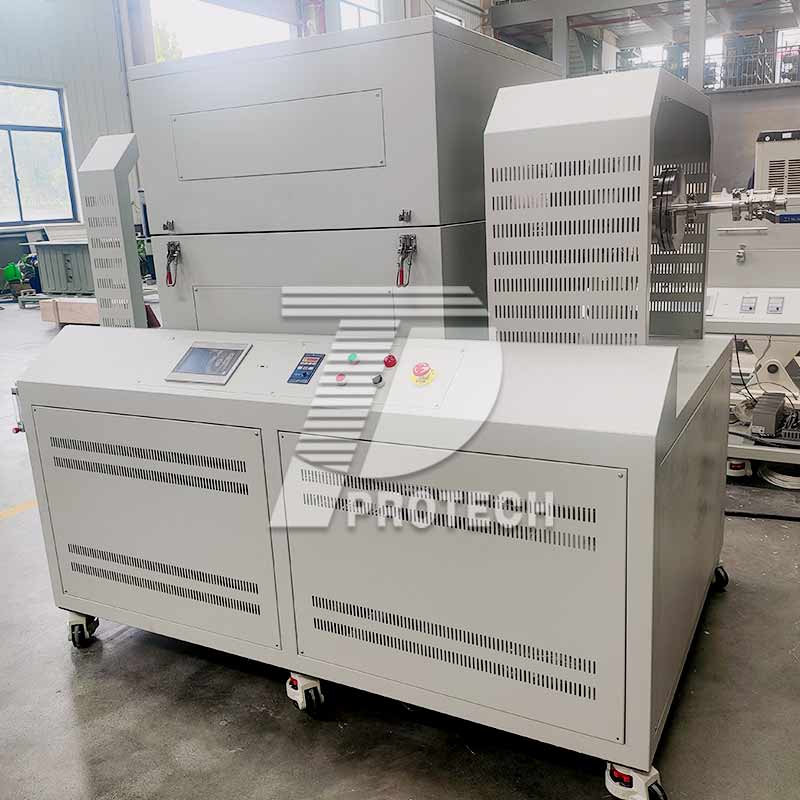

PT-T1000-R200 Rotary Tilt Vacuum Tube furnace
Application: It is a rotary tube furnace with alumina tubes and a 30-segment temperature controller. It is an excellent furnace for sample annealing, diffusion and sintering in various gas atmospheres up to 1000°C.
Contact us for customize
send-email:
info@lab-furnace.com
Detailed Parameters Of The Product
NjhMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacProduct introduction:NjhMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac It is a rotary tube furnace with alumina tubes and a 30-segment temperature controller. It is an excellent furnace for sample annealing, diffusion and sintering in various gas atmospheres up to 1000°C.NjhMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
NjhMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacThe main features are as follows:NjhMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac1. Good temperature uniformity.NjhMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2. Over temperature protection and alarm.NjhMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3. PID automatic control through thyristor power control.NjhMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacNjhMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacNjhMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacTechnical Parameters:
Model |
PT-T1000-R200 |
Furnace structure |
LED (LCD Can be customized according to customer needs) |
Working Temperature |
≤1000℃ |
Heating Rate |
0-20℃/min, Suggestion 0~10℃/min |
Temperature Zone |
Double |
Heating zone length |
400+400mm, total 800mmNjhMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac (Can be customized according to customer needs) |
Tube size |
Center diameter 200mm, both sides diameter 80mmNjhMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac (Can be customized according to customer needs) |
Heating Element |
SiC rods |
Temperature Control Accuracy |
±1℃ |
Tube rotating Speed |
0 - 10RPM variable |
Furnace tilt angle |
0-15° |
Thermocouple |
N type |
Tube material |
310S Stainless steel tube |
Chamber material |
Alumina Fiber |
Sealing flange |
-Left side flange with KF50 magnetic fluid sealing and outlet valves;NjhMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac -Right side flange with KF25 magnetic fluid sealing and gas inlet valves, mechanical pressure gauge.NjhMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac Limit vacuum degree: -0.1Mpa |
Vacuum pump |
Rotary Vane Vacuum PumpNjhMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac Include bellow and fitting for vacuum pumpNjhMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac Flow rate:6L/S |
Temperature Controller |
30 steps programmable PID digital controllers |
Warranty |
One year limited warranty (Consumable parts such as heating elements are not covered by the warranty) |
NjhMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacNjhMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacRotary tube furnace with stirring strip and hood type customized according to customer needs:
