Multi-position Tube Furnace
model:PT-T1200-X

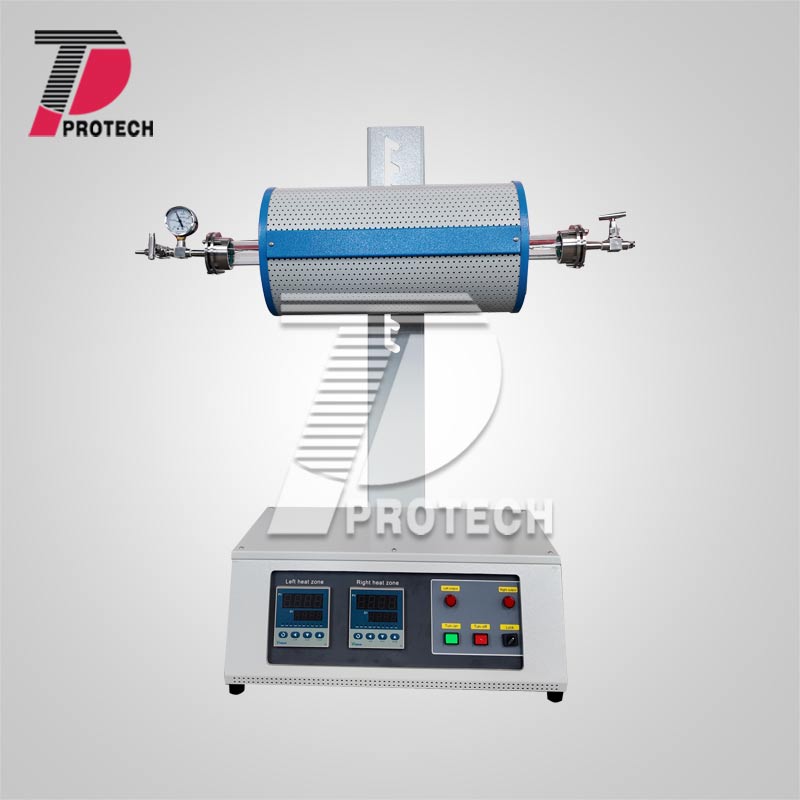

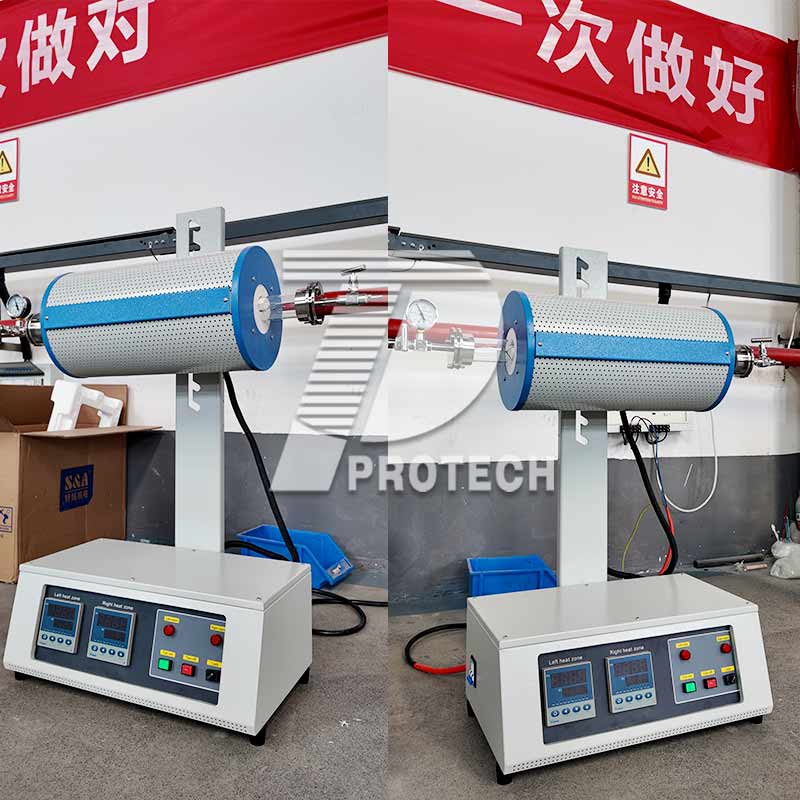

Multi-position Tube Furnace

    Application:  This PT-T1200-X tube furnace is mainly used for Nanotube study, CVD research, sintering, coating, soldering, annealing, melting, analyzing of metal and non-metal materials in both vacuum condition and atmosphere condition in laboratories and enterprises, it can be equipped with vacuum pump system and gas-mixing system.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Specific Introduction:H0aMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
    This PT-T1200-X tube furnace is mainly used for Nanotube study, CVD research, sintering, coating, soldering, annealing, melting, analyzing of metal and non-metal materials in both vacuum condition and atmosphere condition in laboratories and enterprises, it can be equipped with vacuum pump system and gas-mixing system.H0aMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
H0aMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Parameters:
Model PT-T1200-30X PT-T1200-40X PT-T1200-50X PT-T1200-60X
Top Temperature 1200℃
Working Temperature 1100℃
Quartz Tube Diameter Φ30 Φ40 Φ50 Φ60
Heating zone length 200/300mm
Insulation layers High-Purity Alumina Ceramic fiber
Power Supply 110/220V 50/60HZ
Heating Rate 0-20℃/min
Control Accuracy ±1℃
Temperature Sensor K-type Thermocouple
Heating Element 0Cr27Al7Mo2 Resistance Wire
Sealing Flanges
Structure Non-Split
Tilting Angle 0-180
Accessories Gloves, Crucibles, Tongs, Crucible hook.
Optional Vacuum pumps, Gas-mixing system with mass flowmeters or float flowmeters.
Customization is available.
