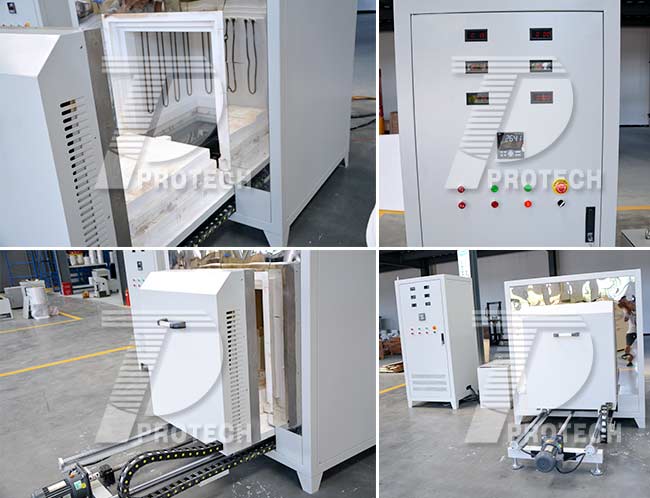

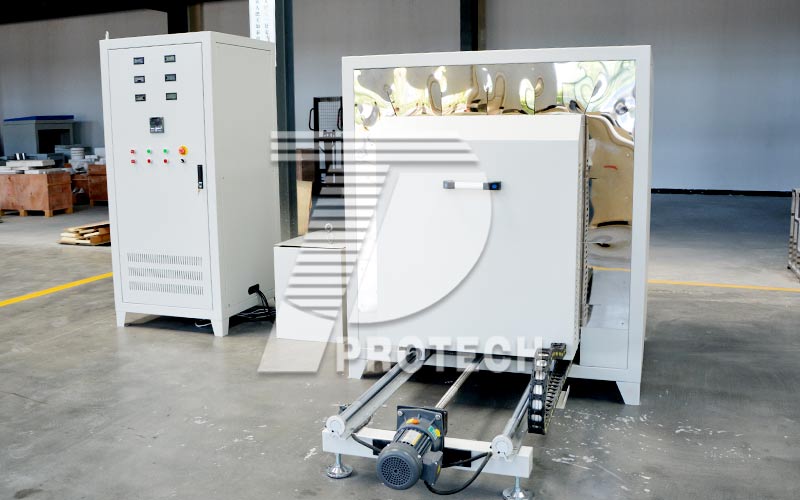

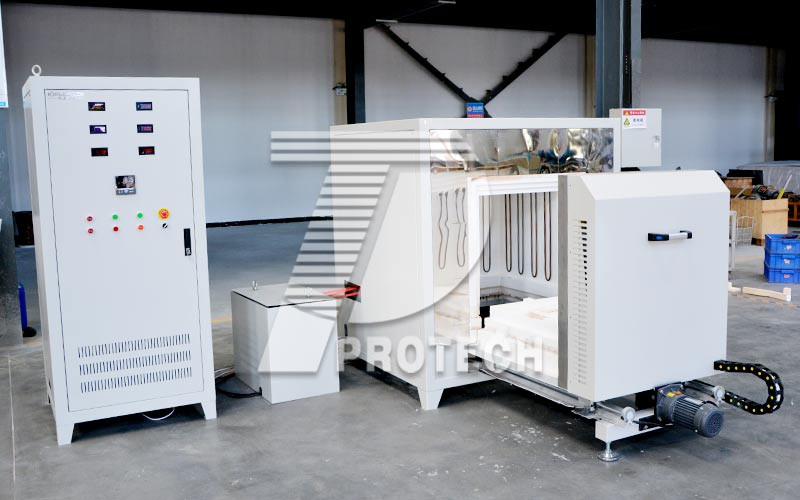

1 | Chamber Structure | Electric trailer type |
2 | Display | LED |
3 | Furnace body structure | Double layer structure with cooling fan |
4 | Furnace shell material | Carbon steel |
5 | Max. Temperature | 1700℃ |
6 | Continuous working Temperature | ≤1600℃ |
7 | Heating Rate | 20℃/min (Suggest 0~10℃/min) |
8 | Accuracy | ±1℃ |
9 | Inside Chamber Size | 600x600x600mm |
10 | Heating Element | High purity MoSi2 rods |
11 | Heating method | Heating from four sides |
12 | Insulation material | High purity alumina fiber |
13 | Thermocouple | B Type |
14 | Max. Power | 60KW(according to design) |
15 | Working Voltage | 380V, three phase, 60HZ |
16 | Temperature Controller | YOKOGAWA brand Model: UP35A-001-11-00 Separate control cabinet |
17 | Heating method | Heating from right, left and back side |
18 | Warranty | One year limited warranty (Consumable parts such as heating elements are not covered by the warranty) |
