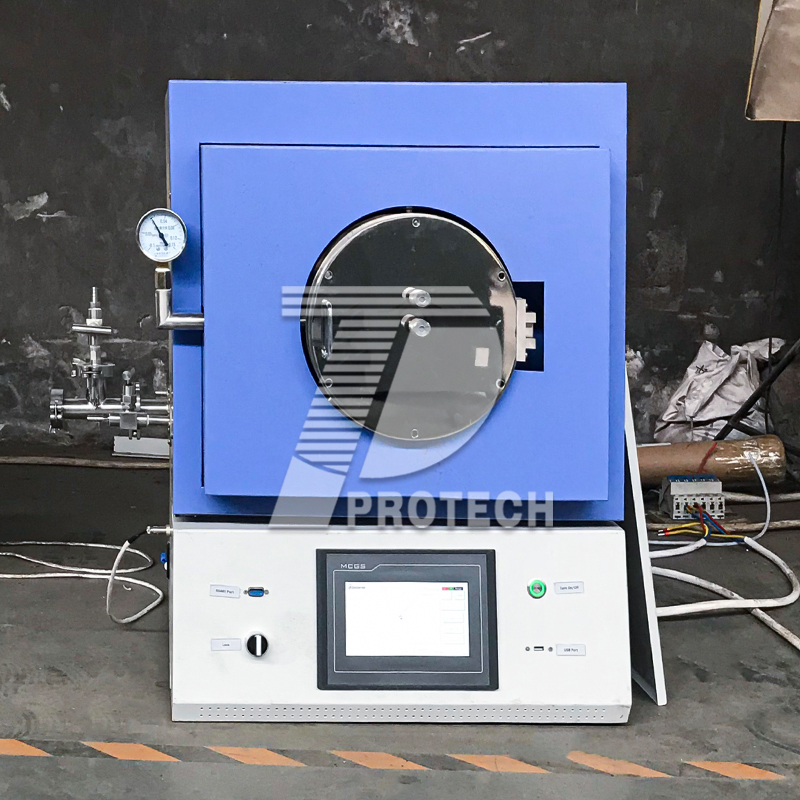

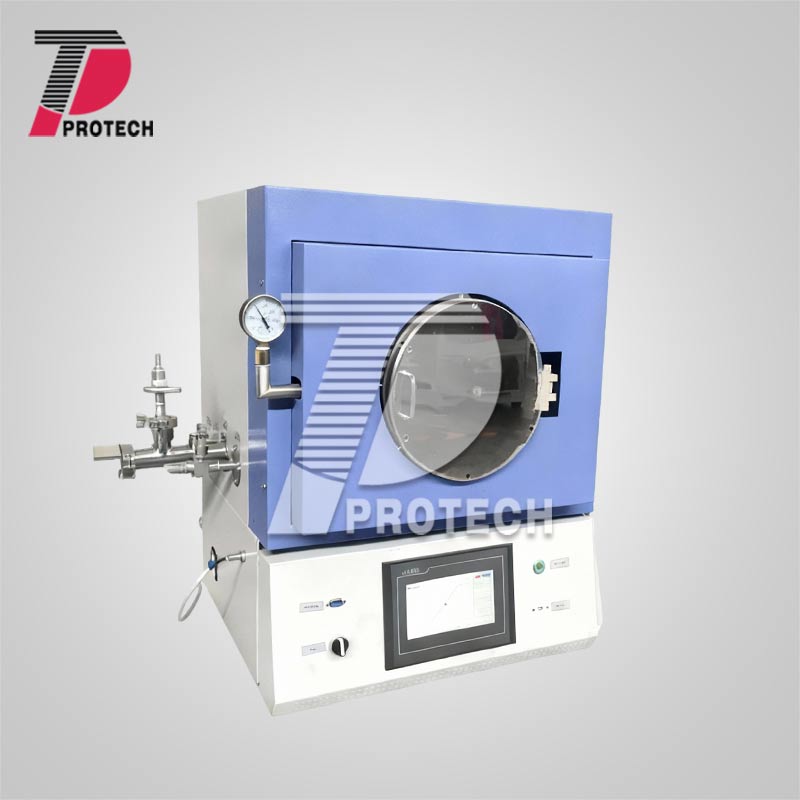

1100℃ Vacuum Chamber Furnace
model:PT-1200X-H8

1100℃ Vacuum Chamber Furnace

    Application:  PT-1200X-H8 is a compact vacuum furnace. It equips a 7.5" ID x 13.4"L Quartz tube chamber sitting horizontally. Water-cooled stainless steel vacuum flanges with valves are installed to achieve a vacuum up to10-5 Torr via turbopump. It is designed for calcining or annealing semiconductor wafers (up to 6") under vacuum or various other gas atmospheres with a temperature up to 1100°C. It also can also be used as a vacuum brazing furnace for fusing small parts.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Specific Introduction:cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
    PT-1200X-H8 is a compact vacuum furnace. It equips a 7.5" ID x 13.4"L Quartz tube chamber sitting horizontally. Water-cooled stainless steel vacuum flanges with valves are installed to achieve a vacuum up to10-5 Torr via turbopump. It is designed for calcining or annealing semiconductor wafers (up to 6") under vacuum or various other gas atmospheres with a temperature up to 1100°C. It also can also be used as a vacuum brazing furnace for fusing small parts.cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
crucible furancecjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Parameters:
Power 1.Voltage: Single-phase 208 - 240 VAC / 50/60Hz, (25 A breaker installed)cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2.3 KW max.cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3.Note: Power cable included but without the plug. Please install a plug by your own or click link below the picture to choose a plug according to your country or your lab  requirement
Working Temperature 1.<= 1000 °C continuouslycjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2.Max. 1100 °C, < 30 minutescjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3.Temperature Uniformity: +/- 2°C
Heating Rate 1.Max. 20°C/ mincjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2.Recommended. 10°C/ min
Heating Elements     High-quality Ni-Cr-Al resistance wire
Quartz Tube & Effective Heating     1.Tube size: 8" O.D. x 7.5" I.D x 13.4" L. cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2.Heating area: 7.5" ID x 8.5" Depth (7.6Liter)cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3.Uniform Temperature zone:  4"Dia x 3.5" depth in center position within +/- 5ºCcjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4.The quartz tube is replaceable
cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Vacuum FlangecjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

1.Stainless steel vacuum flange with dual high-temperature silicone O-rings at the front door with water colling portscjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2.1/4 gas inlet & outlet included which allow continuous gas delivery during operation. A gas quartz tube (6.35mm O.D) is provided to reach the location of the sample and deliver reactive gas to the sample directly. cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3.One 1/4 thermocouple feedthrough port allows a 1/4 O.D thermocouple probe to be inserted into the chamber and measure the temperature of the sample independently. (Thermocouple is optional. Click here to find one). Four probes electric resistance measurement feedthrough also is available upon request.cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4.M15 x 1.5mm Thread for both 1/4" feedthroughcjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
5.One bored Al2O3 foam refractory block (190Dia *  50mm) is provided.cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
6.K type 1/4" OD x 18" L thermocouple is included.  cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
7.Gas Inlet Tube (O.D 6.35mm, I.D 4.0 mm, L 300mm) is included.  cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
8.Mechanical Vacuum Gauge (included as standard accessory), which ranges from -0.1 to 0.15Mpa.
Gas Inlet and Outlet & Water coolingcjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

1.One gas purging inlet (1/4" hose adapter ) with a valve is on the left side of the furnace cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2.The inert gas can be introduced into the chamber via the inlet for purging purposes. cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3.If a continuous gas flow is needed, refer to the additional gas inlet and thermocouple probe below.cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4.A water cooling jacket has been built inside the flange to protect the vacuum sealing O-tings. The inlet and outlet ports located on the left side of the furnace are used for connecting to a water chiller through two 12 mm Dia. polyurethane tubes (16L/minute water flow is required).
Temperature ControllercjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

1.NRTL certified digital temperature controller is included.cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2.Proportional–integral–derivative control (PID control) and auto-tune functioncjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3.30 segments programmed with ramping, cooling, and dwelling stepscjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4.Built-in over-temperature alarm and thermocouple failure alarmcjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
5.+/- 1 ºC temperature control accuracycjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
6.THE Default DB9 PC communication port included for connecting to PCcjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
7.Temperature Controller is available at the extra cost with +/-0.1°C accuracy.
OptionscjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

1.Digital Pressure Gauge (optional) A gas-type independent(above 10mbar) digital vacuum gauge with a wide range between 3.8x10-5 to 1125 Torr.cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2.You may choose a gas mixer to deliver multiple gasses with control over gas composition and flow rate.
Options 1.The sample holder is not provided with the furnace. You may Contact us to order the sample holder separately. cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2.Optional Quartz Thermal Block is available upon request as the refractory block, which can help achieve a higher vacuum level and avoid potential contamination problems, please contact us order Quartz Thermal Block.cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3.A 4-holes 1/4" Alumina Tube can be used for inserting 4 wires (e.g. Pt wires) through the holes for measuring the electrical properties at the high temperature at extra cost.
cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Vacuum PressurecjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Vacuum Level is dependent on the vacuum pump used, connected pipe, interior refractory block's materials, etc. By using KFD25, stainless steel pipe, Kejia's two-stage mechanical pump, and KF25 Ball valve, the furnace can achieve vacuum levels below:cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
1.10-2 torr via mechanical pump within 30 minutes without thermal BlockcjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2.10-4  torr via turbo-pump within 30 minutes with the Quartz Thermal Block at 900CcjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Optional:cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The vacuum pump and pipe are not included, please contact us to order.cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
For achieving a higher vacuum level, a Turbopump is necessary.cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Spare sealing O-ring is available at extra cost .cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
 KF25 Right-Angle Valve for quick connection to KF25 Bellows.
Overall Dimensions 700mm(L) x 440mm(W) x 435mm(H)
Net Weight 80 kg
Shipping Weight 200 lbs
Shipping Volume 45"(L) x28"(W) x35"(H)
cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Warranty
1.One year limited warranty with lifetime support (consumable parts such as processing tubes, and O-rings are not covered by the warranty.).  cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2.ATTENTION: Any damages caused by the use of corrosive and acidic gasses are not under the coverage of Kejia One Year Limited Warranty.
Compliance CE Certified
Warning  cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

1.Tube furnaces with quartz tubes are designed for use under vacuum and at low-pressure <  0.2 bars cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2.Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3.Never heat the furnace while the gas release valve is closed when a positive pressure condition exists within the furnace chamber. cjrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4.Max. 1000°C is limited on all quartz tube furnaces to avoid the quartz tubes' deformation.
