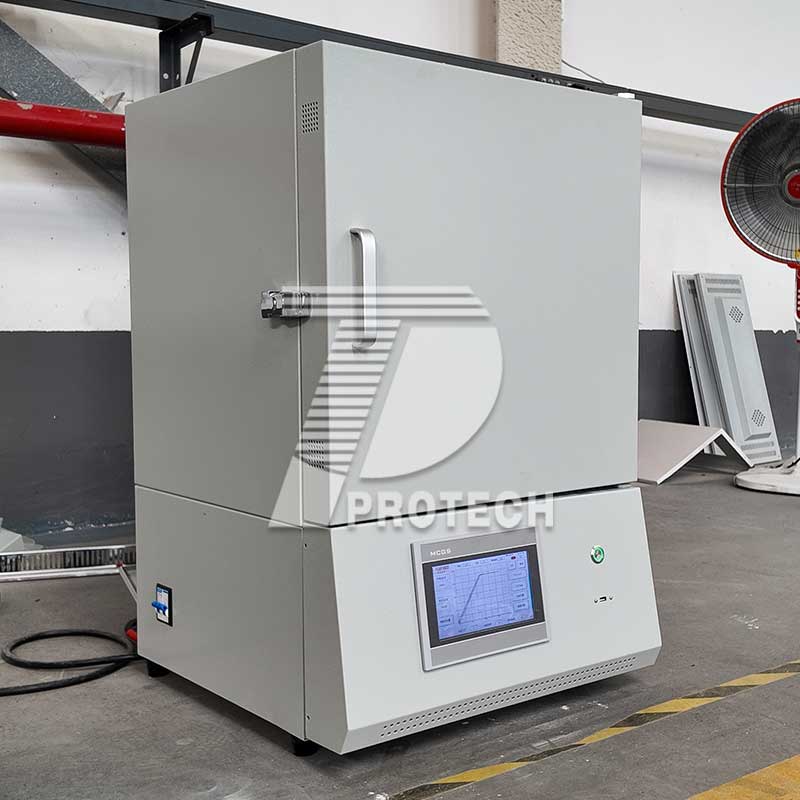

PT-M1700-12LZ High-temperature Box Muffle Furnace
model:PT-M1700-12LZ

PT-M1700-12LZ High-temperature Box Muffle Furnace

    Application:  widely used in material heat treatment, ashing experiment, ceramic sintering and other fields.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Introduction:fx8Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
    PT-M1700-12LZ box furnace is CE-approved with MoSi2 heating rods as heating element, SCR, 518p intellectual temperature controller and B-type thermocouple to achieve high temperature and automatic control. The top temperature can reach 1700℃. Inside the heating chamber, the high-temperature alumina coating increases the energy efficiency and prolong the service life of the furnace.fx8Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
fx8Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Parameters:
Model PT-M1700-12LZ
Working Chamber Size 200*200*300mm  fx8Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Can be customized according to customer needs
Heating Chamber Material High-Purity Alumina Ceramic fiber
Working temperature Top temperature: 1700℃fx8Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Working temperature: 1600℃
Temperature Control 1.PID, Intellectual 30-segment Programmable Controller
2. Touch screen (LED)
Can be customized according to customer needs
Heating Rate 0-30℃/min(Suggestion: 0-10℃/min)
Control Accuracy ±1℃
Heating Element MoSi2 heating rods
Temperature Sensor B-type Thermocouplefx8Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(With Breakage and over-heating alarm)
Outside Shell Electrostatic sprayed Carbon Steel Outside Shell with Cooling Fans
Door Side-open
Power Supply 220V   50HZ/60HZfx8Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(Customizable)
Plug Please let us know the plug in your country when you book the furnace.
Max. Power 6kW
Accessories Door block, Crucible Tong, Gloves, Instruction manual
Certificate CE, ISO.
Option Crucible, Screen Control, Software
Notes 1, In order to ensure the longest possible service life of furnace parts, we recommend heating rate no higher than 10℃/min.fx8Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2, This furnace is not air-tight.fx8Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3, It is normal that there will be tiny cracks on the wall of the heating chamber, they won’t affect the performance of the furnace, and can be repaired with alumina coating.
 fx8Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Warranty
One year warranty with life-time technical support.fx8Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Special notes:fx8Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
1, Consumables like heating element, quartz, crucible and so on are uncovered.fx8Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2, Man-made damage and damage caused by misuse are uncovered.
Other optional chamber sizes
150*150*150mm 150*150*200mm
200*200*200mm 200*200*300mm
300*300*300mm 300*300*400mm
400*400*400mm 500*500*500mm
600*600*600mm 800*800*800mm
Can be customized according to customer needs

fx8Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Temperature control model:
box furnacefx8Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
fx8Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

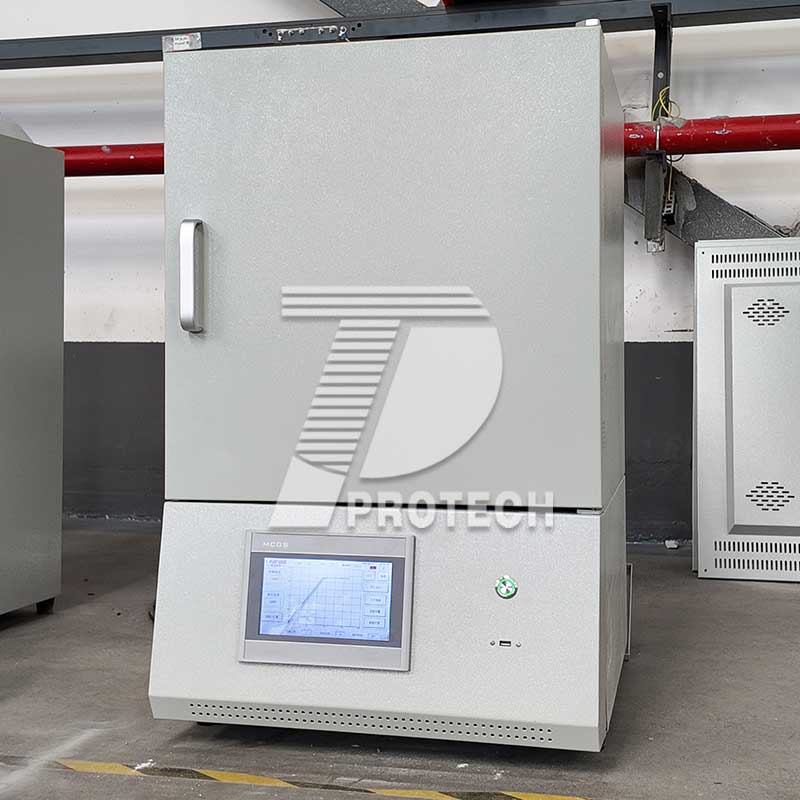

Touch screen model:
box muffle furnacefx8Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
fx8Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
fx8Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
fx8Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
