| Model | PT-M1600-63L |

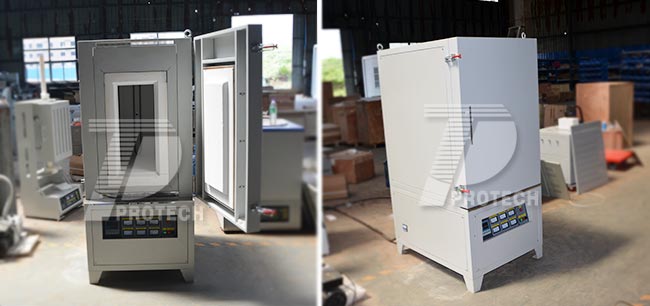

| Picture |
 |
| Furnace structure | Double layer steel casing with dual cooling fan, temperature of furnace shell below 60deg.C. |
| Furnace liner |
Two layers of ceramic fiber insulation materials First layer: 1800deg.C ceramic fiber board Second layer: 1600deg.C ceramic fiber board |
| Chamber dimension |
500 X 250 X 500mm |
| Working temperature | 1600℃ |
| Heating rate | 0-25℃/min (Suggestion: 0-10℃/min) |
| Temp. accuracy | +/-1℃ |
| Thermocouple | B-type thermocouple |
| Temp. control |
PID automatic control via SCR (Silicon controlled rectifier) Power control with phase angle fired, current limiting resistor 30 programmable segments for precise control Bulit-in PID auto-tuned function with overheating & broken thermocouple broken protection. Over temperature protection and alarm allows for operation without attendant |

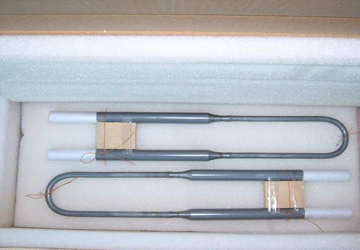

| Heating element | MoSi2 heating rods |
| Working voltage | 220V, 50/60Hz, Single phase(Customized) |
| Power | 20 kW |
| Production period | 15 working days |
| Warranty Period | 1 year (Consumable uncovered.) |
| Other | Can be custom base on your require |
 |
crucible tong 1 pair |
 |
High temperature refractory gloves 1 pair |
 |
Allen key 1 piece |
 |
2 heating rods |
