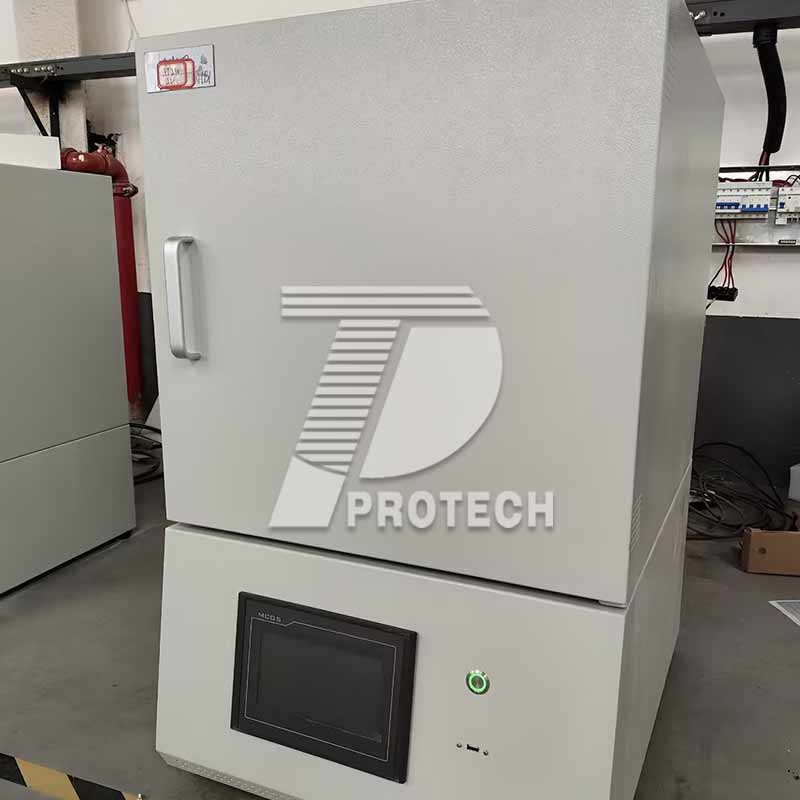

PT-M1400-A4IL Touch screen Lab Muffle furnace
model:PT-M1400-A4IL

PT-M1400-A4IL Touch screen Lab Muffle furnace

    Application:  It is widely used in high temperature sintering in universities, research institutes and industrial and mining enterprises.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product

YIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Description:YIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
PT-M1400-A4IL Lab Muffle furnace unique touch screen system make the control more accurate and graphic interface more convenient.This series lab muffle furnace can be widely used in universities, research institutes,industrial and mining enterprises for high temperature sintering,materials sintering,composition analysis,quality testing and related heating treatment work.YIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
YIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
YIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
1.Features of Lab Muffle furnaceYIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

(1).The unique touch screen control system, and make the control more accurate graphic interface YIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
   convenient operation
YIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
YIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

(2).Adopted the SIC heating element.YIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
YIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

(3).Furnace with high purity alumina fiber materials produced through unique technology, heat YIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
   preservation performance outstanding thus reducing power consumption by 30%
YIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
YIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

(4).Can be equipped with computer software interface, through the computer PC global monitoringYIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
    and operationYIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

YIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks! YIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

YIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

2.Technical parameters of Lab Muffle furnace :YIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac


Model PT-M1400-A4IL
Chamber model Side Door
Display Touch Screen (LED)
Limiting temperature 1400℃
Working temperature ≤1300℃
Heating rate Suggestion 0~10℃/min
Temperature accuracy ±1℃
Inside chamber Size 200×200×300(mm) Can be customized according to customer needs
Heating element SiC
Thermal couple S Type
Temperature control PID automatic control via SCR power control
Heating curves 30 steps programmable
Chamber material Alumina Fiber
Rated power 6KW
Working voltage AC 110-480V  50-60Hz
Warranty 12 month (exclusive wearing part)
Other optional chamber sizes
150*150*150mm 150*150*200mm
200*200*200mm 200*200*300mm
300*300*300mm 300*300*400mm
400*400*400mm 500*500*500mm
600*600*600mm 800*800*800mm
Can be customized according to customer needs
touch screen box furnaceYIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Touch screen box furnace
Lab Muffle furnace can be customized according to customers’requirements.YIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
YIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Temperature controlled box furnaceYIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Temperature controlled box furnace
YIXMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
