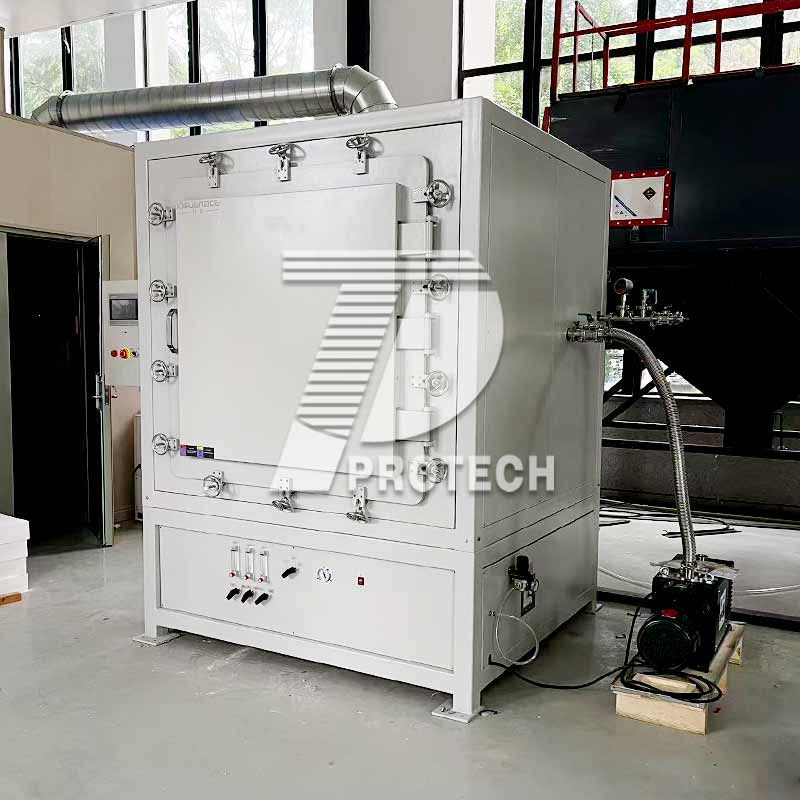

1700C Atmosphere muffle furnace
model:PT-A1700

1700C Atmosphere muffle furnace

    Application:  Protech atmosphere muffle furnace is mainly used for the high temperature sintering and annealing of materials under protective gas.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product

Brief Introduction:

Protech atmosphere muffle furnace is mainly used for the high temperature sintering and annealing of materials under protective gas.tlsMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
 tlsMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The main features are as below:tlsMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
1. High uniform temperature.tlsMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2.Easy to operate.tlsMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3.Over temperature protection and alarm.tlsMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4.Compact Structure.

Technical Parameter:

Chamber Structure Side Door
Display LED Display
Max. Temperature 1700℃ for short time
Continuous working Temperature ≤1600℃
Heating Rate Suggestion 0~10℃/min (Max.20℃/min)
Inside Chamber Size 600*600*600mm (Width * height * depth)
Heating Element MoSi2
Thermocouple B Type
Max. Power 60Kw
 tlsMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Working Voltage
 AC 380V,3 phases, 50 Hz
Temperature Control PID automatic control via SCR power control
Heating curves 30 steps programmable
Chamber material Alumina Fiber
Gas inlet and outlet Stainless steel gas inlet with needle valvetlsMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Stainless steel gas out let with needle valve and mechanical pressure gaugetlsMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
atmosphere furnace
Hand Wheel To tight the door for better sealing in chamber.
Float Flow meter Standard flow range:tlsMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
FFC1: 10-100ml/mintlsMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
FFC2: 16-160ml/mintlsMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Or according to your requirement.
Atmosphere Condition like nitrogen , argon YestlsMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The furnace max working temperature up to 1500℃if inlet nitrogentlsMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The furnace max working temperature up to 1600℃ if inlet argon
Warranty One year warranty (Consumable parts such as heatingtlsMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
elements are not covered by the warranty)
Standard Accessories Crucible tong x 1 pairtlsMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Protective glove x 1 pair
External Dimensions reference 1200*2100*1250mm (width* height*depth) for 600*600*600 inside chamber size.tlsMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Note:  if the external dimensions  is too big for you , we could design and produce the furnace part and control parts separately, please check the last picture on last page as reference)
