Home > Products > Muffle Furnace > Atmosphere Furnace > 1500-1700°C
atmosphere lab sintering furnace
model:PT-1200A

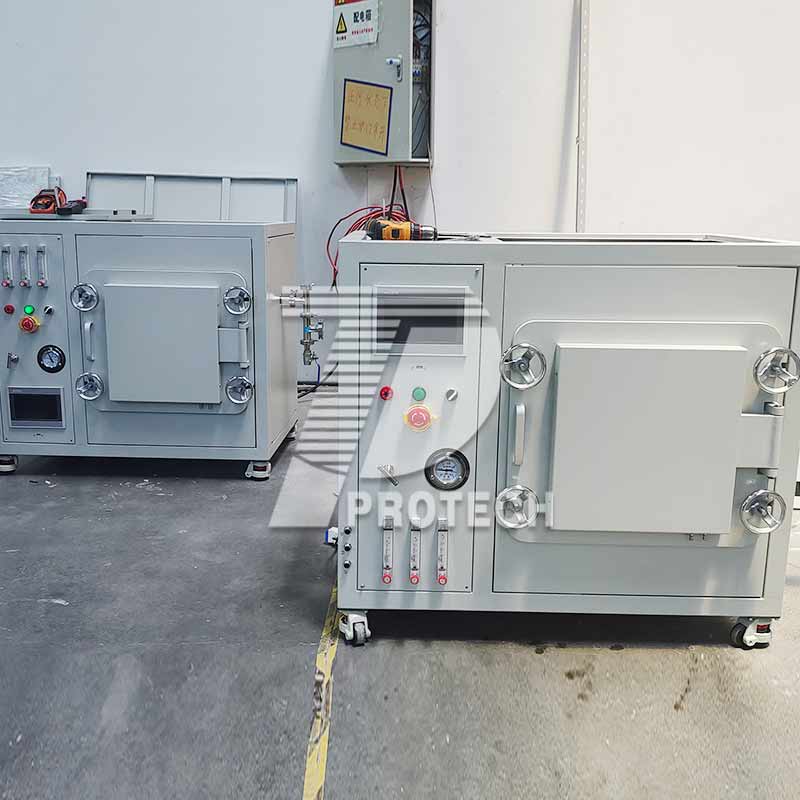

atmosphere lab sintering furnace

    Application:  The vacuum atmosphere furnace is specially manufactured for different process experiments. It is suitable for the sintering of electronic ceramics and high-temperature structural ceramics, the precision annealing and microcrystallization of glass, the precision annealing of crystals, the preparation of ceramic glazes, powder metallurgy, and the sintering of nanomaterials. Quenching of metal parts and all heat treatment requiring rapid heating process. It is an ideal experiment and production equipment for scientific research institutions, universities, industrial and mining enterprises.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product

Description：tXWMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
    Atmosphere lab sintering furnace can protect materials from oxidation and decarburization with flowing nitrogen and other inert gases。tXWMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Features of atmosphere lab sintering furnace :

1. Max. energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.tXWMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2. Heavy duty double layer structure with cooling fan. Lower temperature in outside case.tXWMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3. PID automatic control via current limiting phase angle fired the resistor,e.g SCR (Silicon Controlled Rectifier)tXWMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Range of use：tXWMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
    Atmosphere furnace is widely used in all kinds of colleges and universities laboratory, chemical laboratory, industrial and mining enterprises for chemical analysis, physical measures, as well as metal, ceramic sintering, such as piece of small steel heating, calcination, heat treatment.tXWMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

tXWMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Technical parameters of atmosphere lab sintering furnace :

Model PT-1200A
Display LED
Max. temperature 1200°C
Working temperature ≤1100°C
Heating rate Suggestion 0-20°C/min
Temperature accuracy +/-1°C
Inside chamber 300×300×4000mm
Heating element Aludirome
Thermal couple K Type
Max. power 5kw
Working voltage AC110-480V , 50/60HZ
Temperature control PID automatic control via SCR power control
Heating curves 30 steps programmable
Warranty 12 month (exclusive wearing part)
tXWMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

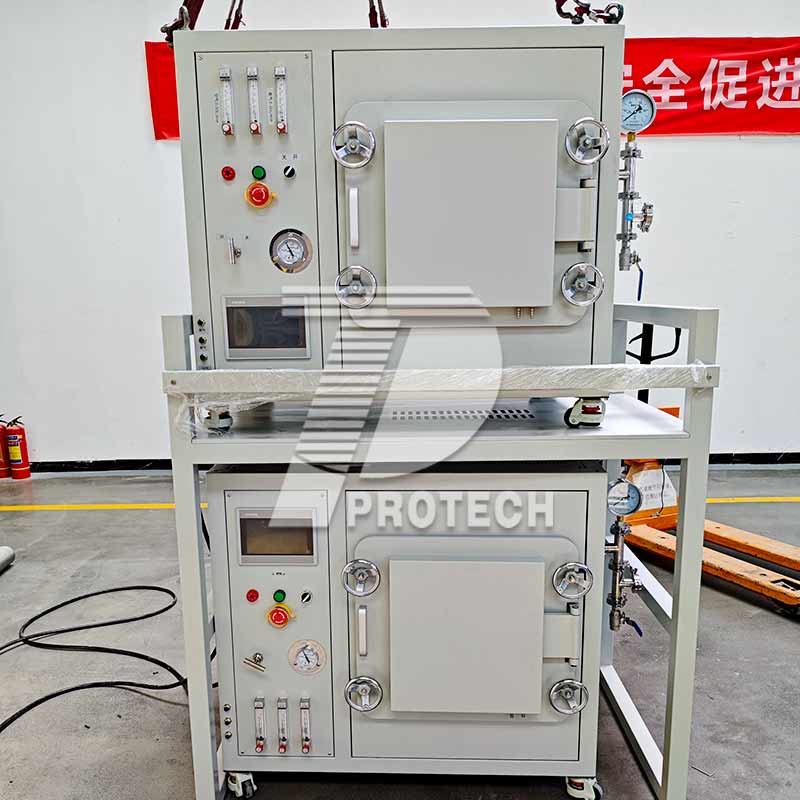

atmosphere lab sintering furnace
1200°C atmosphere furnace can be customized according to customers’requirements.、tXWMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!tXWMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
