Product introduction:

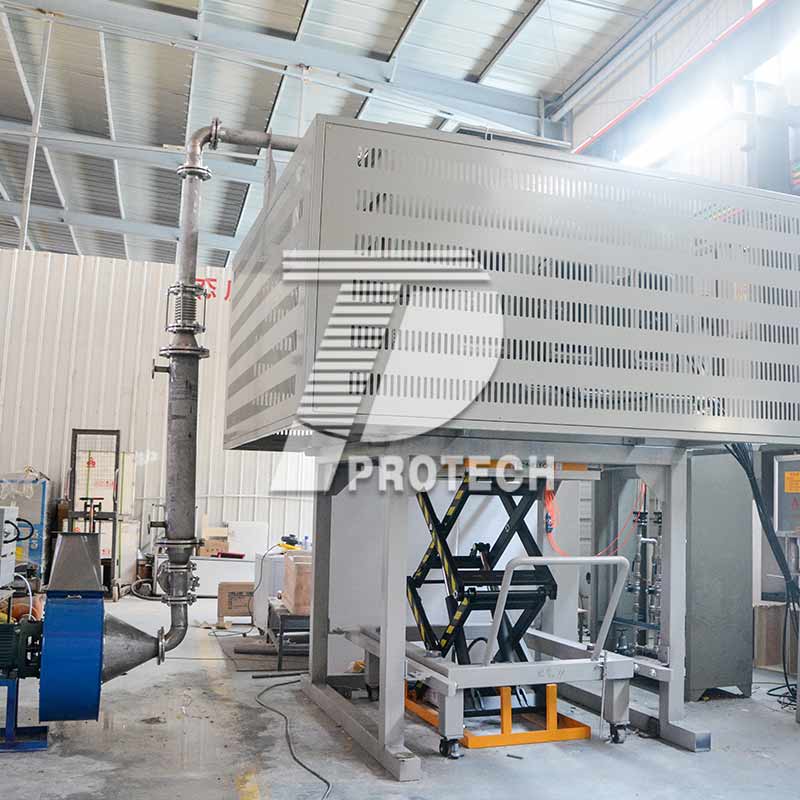

This Hydraulic Bell Atmosphere Furnace is a bottom-loading box-type atmosphere furnace with a maximum temperature of 1400°C. The furnace material of this equipment is high-purity alumina fiber, and silicon carbide rod is used as the heating element (4 sides heating, more uniform temperature field). The furnace body can be evacuated & can pass into the atmosphere, and the material can be heat treated in an inert atmosphere and an O2 atmosphere. The hydraulic lifting platform + freely movable material cart (with positioning and limit) is very convenient for material in and out operations.
Technical Parameters:
|
Product number |
PT-E1400-512LDZ |
|
Furnace structure |
Double-layer shell structure, equipped with a cold air system to automatically cool the furnace shell |
|
Furnace material |
High-quality and high-purity alumina polycrystalline fiber curing furnace, with good material insulation performance, high reflectivity and balanced temperature field |
|
Maximum temperature |
1400°C |
|
Operating temperature |
≤1300℃ |
|
Heating rate |
Recommended ≤10℃/min |
|
Heating zone size |
800*800*800mm (width * height * depth) |
|
Temperature Control System |
With PID adjustment and self-tuning functions, and can program 30 sections of temperature rise and fall programs; |
|
Heating element |
Silicon carbide rod |
|
Temperature measuring element |
S-type thermocouple |
|
Inlet and outlet ports |
Suitable positions are equipped with inlet, outlet and vacuum ports, and there are float flowmeters and mechanical vacuum pressure gauges on the gas path |
|
Sealing system |
The furnace door and roof are sealed with high temperature silicone rubber. The furnace has an air inlet and an air outlet that can pass gas and can be vacuumed |
|
Gas line |
Float Flowmeter |
|
Inflatable body |
Oxygen, inert gas (slightly positive pressure) |
|
Door opening method |
Bottom hydraulic lift |
|
Material car (optional) |
Free moving feeder |
|
Vacuum pump (optional) |
Rotary vane pump |
|
Ultimate vacuum |
-0.1MPa |
|
Power supply |
AC220V/380V, 50/60Hz |
|
Standard configuration |
1 pair of crucible tongs, 1 pair of high temperature gloves, 1 manual, 1 certificate of warranty card |
|
More specifications can be customized according to customer needs |
|
