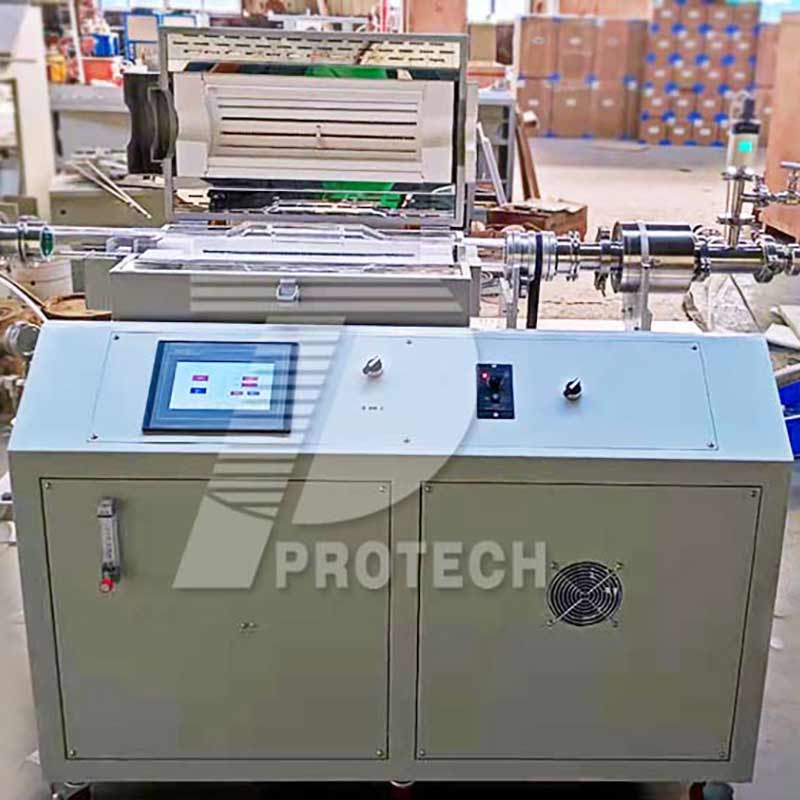

How to Choose Rotary Tube Furnace Processes for Materials

Introduction: Rotary Tube Furnace – The "Core Process Equipment" for Material Innovation

In fields such as ceramic sintering, metal powder modification, nanomaterial synthesis, and catalyst preparation, rotary tube furnaces have become key equipment for optimizing material performance, thanks to their core advantages of uniform heating, controllable atmosphere, and continuous production. However, different materials exhibit significant differences in physical and chemical properties (e.g., melting point, reactivity, particle size requirements). Improper selection of process parameters not only fails to achieve the desired results but may also lead to material scrap and equipment damage. This article will break down the core logic of selecting rotary tube furnace processes based on material types, while presenting high-performance equipment solutions tailored to different scenarios.

I. Core Dimensions of Process Selection: Four Parameters Determine Material Quality
For any material, the process design of a rotary tube furnace revolves around the following four core parameters, which need to be dynamically adjusted according to material requirements:
Heating Temperature and Ramp Rate: Low-temperature materials (e.g., polymer-based composites) require temperatures below 300℃ with a ramp rate ≤5℃/min; high-temperature materials (e.g., ceramics, refractory metals) demand 800-1800℃, and the ramp rate can be increased to 10-20℃/min to avoid material cracking.

Atmosphere Control: Oxidizing atmosphere (air) is suitable for ordinary metal oxidation treatment; inert atmosphere (N₂, Ar) prevents material oxidation, adapting to precious metal and nanopowder preparation; reducing atmosphere (H₂, CO) is used for metal oxide reduction and catalyst activation; vacuum environment is ideal for volatile materials or scenarios requiring freedom from gas impurities.
Furnace Tube Rotation Speed and Inclination Angle: Rotation speed directly affects material mixing uniformity and residence time – typically 5-20rpm for powder materials and 3-10rpm for granular materials; the inclination angle adjusts material flow rate, with 0-5° enabling continuous feeding and discharging, and a large inclination angle suitable for rapid blanking.
Soaking Time: 30-60 minutes for low-temperature reactions (e.g., organic material modification); 2-4 hours for high-temperature sintering (e.g., ceramic densification) to ensure sufficient reaction completion.

II. Material-Specific Process Adaptation Schemes (with Equipment Advantages)
1. Ceramic Materials (Sintering, Crystallization)
Process Requirements: High temperature (1200-1800℃), inert atmosphere (Ar), slow heating (5℃/min), long soaking time (3 hours)
Equipment Advantages: Our rotary tube furnace adopts high-purity alumina/corundum furnace tubes, resistant to high temperature and corrosion; PID precise temperature control with a temperature difference ≤±3℃ ensures uniform ceramic grain growth, enhancing density and mechanical strength.
2. Metal Materials (Powder Modification, Oxidation-Reduction)
Process Requirements: Medium-high temperature (600-1200℃), reducing atmosphere (H₂/N₂ mixture), adjustable rotation speed (8-15rpm)
Equipment Advantages: The furnace tube is made of 310S stainless steel, resistant to hydrogen corrosion; precise atmosphere flow control (0-5L/min) enables efficient reduction of metal oxides, while the rotating structure prevents powder agglomeration and improves powder fluidity.
3. Nanomaterials (Graphene, Carbon Nanotube Synthesis)
Process Requirements: Medium-low temperature (500-900℃), inert/reactive atmosphere (Ar/C₂H₂), rapid heating (15℃/min), short residence time
Equipment Advantages: The furnace body features a double-layer insulation structure for rapid heating and energy efficiency; customizable quartz furnace tubes with excellent light transmittance adapt to catalyst-assisted synthesis; stepless adjustable rotation speed (0-30rpm) ensures uniform nanomaterial growth and controllable particle size.
4. Polymer-Based Composites (Flame Retardant Modification, Crosslinking)
Process Requirements: Low temperature (200-400℃), air/inert atmosphere, slow heating (3℃/min)
Equipment Advantages: High temperature control precision in the low-temperature range to avoid polymer degradation; strong furnace tube sealing prevents flame retardant volatilization; compatible with continuous feeding systems to meet industrial production needs.

III. Key Criteria for Equipment Selection: Beyond Process Adaptation
Material Compatibility: The furnace tube material must match the material and atmosphere (e.g., Hastelloy furnace tubes for corrosive atmospheres);
Temperature and Atmosphere Control Precision: Support for multi-stage program heating and digital atmosphere flow regulation;
Structural Flexibility: Adjustable rotation speed and inclination angle, and customizable furnace tube length/diameter;
Safety: Equipped with over-temperature protection, gas leakage alarm, and pressure relief devices;
After-sales and Customization: Provision of process consultation, equipment commissioning, and personalized customization services.

Conclusion: Choose the Right Process + Equipment for Efficient Material Innovation
The core of selecting a rotary tube furnace process lies in "material property-parameter matching", and high-quality equipment is the key guarantee for process implementation. With years of experience in thermal equipment, our rotary tube furnaces cover the full temperature range of 1200-1700℃, supporting multiple atmosphere modes including air, inert, reducing, and vacuum. We also offer customized process solutions + personalized equipment modification services based on your material needs. Whether for laboratory-scale R&D or large-scale industrial production, we can provide stable and efficient solutions to help you achieve material performance breakthroughs and industrial upgrading.

For exclusive process solutions or equipment quotes, please contact our technical team!
