What is a hydrogen reduction furnace?

A hydrogen reduction furnace is an industrial thermal process that uses hydrogen (H₂) as a reducing agent to reduce metal oxides or materials at high temperatures, thereby obtaining pure metals or products in a lower oxidation state.

At its core, it's a high-temperature chemical reactor that achieves its goal through a simple replacement reaction:
Metal oxide + hydrogen → metal + water vapor

I. Core Principle: Chemical Reduction
The general reaction formula is:
MO (metal oxide) + H₂ → M (metal) + H₂O (water vapor)

For example:

Using hydrogen to reduce tungsten trioxide (WO₃) to produce tungsten powder (W):
WO₃ + 3H₂ → W + 3H₂O

Using hydrogen to reduce iron oxide (Fe₂O₃) to produce pure iron powder:
Fe₂O₃ + 3H₂ → 2Fe + 3H₂O

In this reaction:

Hydrogen (H₂) is the reducing agent: it removes oxygen from the metal oxide.

The metal oxide is reduced: it loses oxygen atoms and becomes a single metal.

Water vapor is produced as the primary byproduct.

II. Main Equipment Features and Requirements
Due to the use of flammable and explosive hydrogen and the high temperatures at which it operates, the hydrogen reduction furnace requires specialized design features:

Extremely tight sealing: The furnace must be tightly sealed to prevent the ingress of air (oxygen) and hydrogen leakage, thereby preventing the formation of explosive gas mixtures.

Precise atmosphere control: The hydrogen flow rate, pressure, purity, and composition of the furnace atmosphere must be precisely controlled.

A comprehensive safety system: This is a top priority in the design and typically includes the following:

Gas purge system: Before hydrogen is introduced and after the furnace is shut down, the air or hydrogen in the furnace must be completely replaced with an inert gas (such as nitrogen or argon).

Explosion-proof device: A pressure relief and explosion-proof vent is installed.

Flame monitoring and automatic shut-off: Ensures that the exhaust port is ignited to prevent the accumulation of unreacted hydrogen.

Special refractory material selection: The furnace lining material and heating elements must be able to withstand the high-temperature hydrogen environment to prevent phenomena such as hydrogen embrittlement.

III. Main Types
Based on structure and process continuity, they are primarily classified as follows:

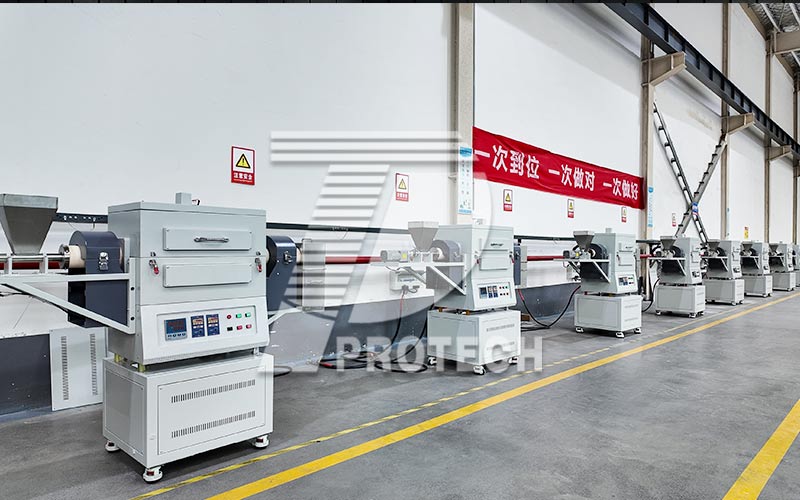

Tube furnaces: Commonly used in laboratories or small-batch production, with the material contained in a tube and hydrogen flowing within. They offer precise temperature control and high flexibility.

Bell-shaped furnaces: Materials are stacked on a base and enclosed within a large bell-shaped furnace hood for heating and reduction. Suitable for medium-sized batches of powders or finished products.

Pusher kilns/mesh belt kilns: Continuous reduction furnaces. Materials are placed on heat-resistant pusher plates or mesh belts and slowly pass through the furnace chamber at different temperature zones, enabling continuous feeding and discharge. They offer high throughput and efficiency, making them suitable for large-scale production (e.g., of magnetic materials).

Rotary kilns: The furnace body is a slowly rotating cylinder, where the material continuously tumbles, providing ample contact with the hydrogen. Suitable for granular materials.

IV. Main Applications
Hydrogen reduction furnaces are essential equipment in many high-end manufacturing industries:

Magnetic Material Production:

This is a key process in the manufacture of permanent ferrite magnets. Iron oxide (Fe₂O₃) and strontium or barium carbonates are reduced and sintered in a hydrogen atmosphere to form hexagonal ferrites with specific magnetic properties.

Powder Metallurgy:

Used to produce high-purity metal powders such as tungsten, molybdenum, cobalt, nickel, and iron. These powders are the basis for manufacturing cemented carbide, alloy additives, and other materials.

Electronics and Semiconductor Industry:

Annealing: Silicon steel sheets, electrical pure iron, and other materials are annealed in a hydrogen atmosphere to eliminate internal stresses, clean the surface, and restore and enhance magnetic properties.

High-Purity Silicon Production: In the Siemens process for producing polysilicon, trichlorosilane (SiHCl₃) is reduced with hydrogen to deposit high-purity polysilicon on a hot silicon core.

Steel Industry - Direct Reduced Iron:

Iron ore (iron oxide) is directly reduced to sponge iron (DRI) using hydrogen (or hydrogen-rich synthesis gas), which serves as a high-quality raw material for electric furnace steelmaking. This is a crucial technological path toward "green steel" and carbon neutrality.

Summary
A hydrogen reduction furnace is a core piece of equipment that utilizes the reducing properties of hydrogen to produce high-purity metals or specialized functional materials in a high-temperature, oxygen-free environment.

Its value lies in providing a pure, strongly reducing atmosphere, producing materials with low oxygen content and excellent performance.

Its core requirements are safety, sealing, and precise control.

Its future lies in serving as the core of hydrogen metallurgy, driving the green and low-carbon transformation of heavy industries like steel.

Simply put, it is a "magic reactor" that, under strict safety protection, uses hydrogen to "strip" oxygen atoms, thereby "refining" high-purity metals.
