Factors Affecting Temperature Gradients in Tube Furnaces

During the heating process, the temperature distribution within a tube furnace is often uneven, resulting in a temperature gradient. The magnitude and distribution of this temperature gradient significantly impacts the heat treatment results, reaction processes, and product quality. According to search results, the following factors have a significant impact on the temperature gradient within a tube furnace:

1. Heating Element Distribution and Power Control

The layout and power distribution of heating elements directly affect the heat distribution within the furnace. Uneven heating element distribution or inaccurate power control can lead to localized temperatures being too high or too low within the furnace, resulting in significant temperature gradients. Using a zoned heating system (such as multi-zone PID control) can effectively optimize temperature distribution.

2. Furnace Structure Design

The furnace's geometry, insulation thickness, and thermal conductivity all influence the temperature gradient. For example, internal flow-guiding structures (such as spiral baffles) can improve airflow distribution, thereby reducing temperature variations. Furthermore, the furnace's sealing and insulation properties also have a direct impact on temperature uniformity.

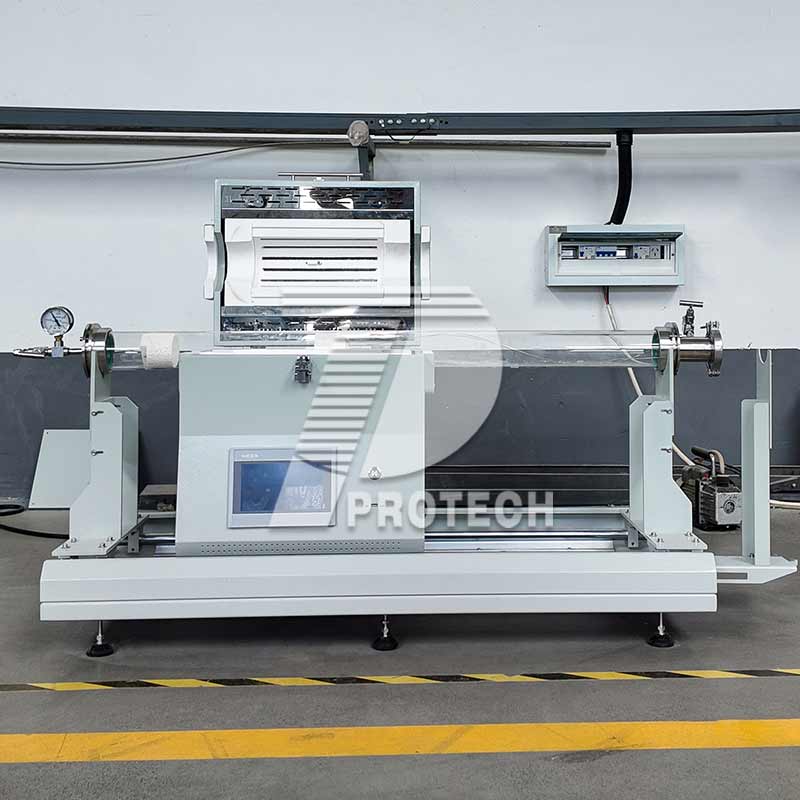

tube furnace

3. Gas Flow

Gas flow within the furnace is a key factor influencing temperature gradients. Gas flow mechanisms include:

Combustion reaction drive: High-temperature flue gases generated by fuel combustion create forced convection;

Material conveying disturbance: Solid materials induce airflow during conveying;

Pressure gradient effect: The slightly positive pressure environment within the furnace promotes directional gas movement.

The more uniform the airflow, the more consistent the temperature distribution within the furnace. Research has shown that optimizing airflow distribution (such as by installing flow guides) can improve temperature uniformity by over 30%.

4. Material Properties and Loading Method

The thermal conductivity, density, particle size, and loading method of the material all affect heat transfer and distribution within the furnace. For example, powdered materials are more likely to generate gas-solid two-phase flow than flake materials, which exacerbates the formation of temperature gradients. Furthermore, the uniformity of the material distribution within the furnace can also affect local temperature variations.

5. External Environment and Cooling System

Changes in external ambient temperature and the operating status of the cooling system can also affect the temperature gradient within the furnace. For example, if the cooling air system outside the furnace operates asymmetrically, the temperature may drop more rapidly on one side, creating a localized temperature difference.

Recommended Temperature Gradient Control Strategies

To reduce temperature gradients within a tube furnace and improve heating uniformity, the following measures can be taken:

Use a multi-zone heating system to achieve precise temperature control in each zone;

Optimize the furnace structure design, such as installing baffles to improve insulation performance;

Improve gas flow conditions to ensure uniform airflow distribution;

Control material loading methods to avoid localized accumulation or excessive gaps;

Strengthen cooling system management to ensure symmetrical cooling and prevent excessive localized temperature differences.
