Key techniques for temperature control in vacuum furnace operation

Temperature control in vacuum furnaces is crucial for ensuring product quality and process stability. The following summarizes key temperature control techniques from the perspectives of equipment configuration, control strategies, and operating procedures, combined with practical applications.

1. Equipment configuration optimization: ensuring basic temperature control capabilities
a . Select high-precision temperature sensor
Use thermocouples or infrared sensors with fast response speed and high precision to monitor temperature changes in the furnace in real time to ensure the accuracy of data collection.

b . Equipped with advanced temperature control system
Use PID controller or more advanced control algorithms (such as fuzzy control, adaptive control) to achieve dynamic temperature adjustment and reduce overshoot and hysteresis.

c . Optimize heating element layout and thermal field design
Reasonable arrangement of heating elements ensures uniform temperature distribution in the furnace, avoids local overheating or cold areas, and improves overall temperature control accuracy.

2. Control strategy: precise adjustment and automated management
a . Set a reasonable temperature curve
Develop segmented heating, holding, and cooling curves based on material properties and process requirements. For example, ceramic materials require a slow heating ramp to prevent cracking during sintering, while metal materials can be heated quickly to improve efficiency.

b . Dynamic power regulation
In the initial stage of heating, high power is used to quickly heat up, and when it approaches the set temperature, it is switched to low power to keep warm to avoid excessive temperature fluctuations.

c . Introducing automated control systems
The PLC system is used to achieve automatic temperature adjustment, reduce human intervention errors, and ensure process repeatability and stability.

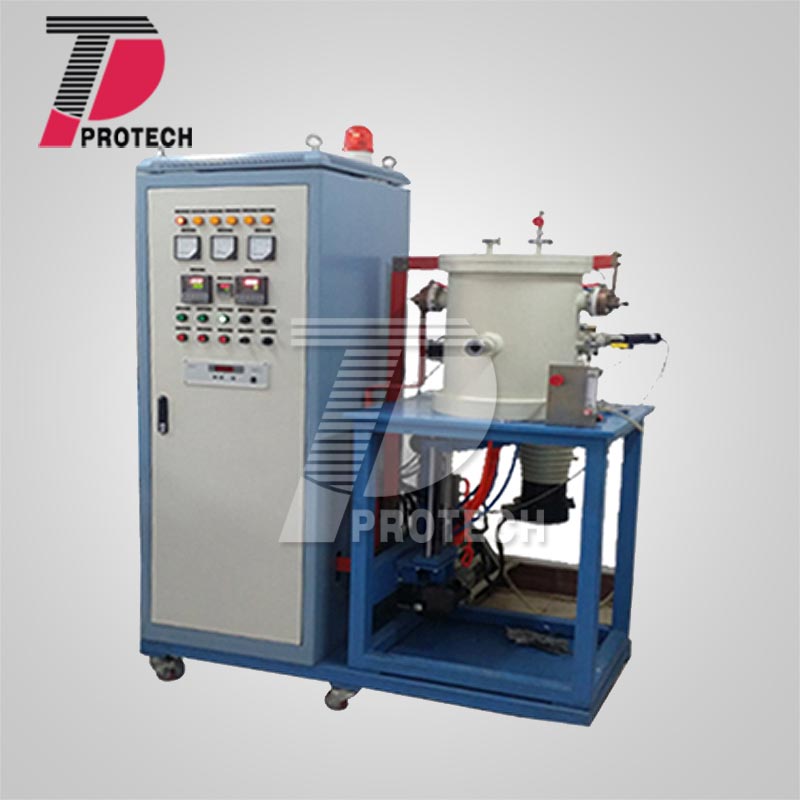

vacuum furnace

3. Operational specifications: standardized processes and detail management
a . Preheating and cooling control
Preheating treatment should be carried out before formal heating to avoid thermal shock; the cooling rate should be controlled during the cooling stage to prevent defects in the material due to rapid cooling.

b . Regularly calibrate the temperature control system
Regularly calibrate the temperature sensor and controller to ensure that the displayed value is consistent with the actual value to prevent temperature control inaccuracy due to errors.

c . Monitor and record temperature data
Monitor the temperature changes in the furnace in real time and record key node data to facilitate later analysis and process optimization.

4. Common Problems and Solutions

question	reason	Solution
Temperature overshoot	Improper control parameter settings	Adjust PID parameters to reduce heating power response speed
Large temperature fluctuations	Sensor failure or interference	Check sensor connection and shield electromagnetic interference
Slow heating rate	The heating element is aging or has insufficient power.	Replace heating element or adjust power setting
Uneven temperature in the furnace	Unreasonable thermal field design	Optimize the layout of heating elements to increase the uniform temperature area

5. Summary and Suggestions
•Technical level: Prioritize the use of high-precision sensors and intelligent control systems to ensure the stability and accuracy of temperature control.
•Operational level: Develop standardized operating procedures, regularly maintain equipment and calibrate control systems.
•Management level: Establish temperature monitoring and data analysis mechanisms to continuously optimize process parameters.
Through the comprehensive application of the above techniques, the temperature control accuracy of the vacuum furnace can be significantly improved, product quality can be guaranteed, production efficiency can be improved, and the service life of the equipment can be extended.
