Comparative analysis of thermal efficiency between tube furnace and muffle furnace

Comparative analysis of thermal efficiency between tube furnace and muffle furnace

I. Factors affecting thermal efficiency

The influence of heating method on thermal efficiency
Tubular furnace: The tube furnace adopts indirect heating method to transfer heat to the sample through the heating tube. This heating method makes the heat distribution more uniform and the temperature control accuracy is high. However, since the sample is placed in the tube, the heating area is relatively small, and there is a certain amount of heat loss during the heat transfer process. For example, in some experiments with small batches of samples, although the temperature can be accurately controlled, for large-scale sample processing, the efficiency of this heating method may be limited to a certain extent, and the heating speed is relatively slow, thus affecting the thermal efficiency.

Muffle furnace: The muffle furnace adopts direct heating method, and the air in the heating chamber is forced to convect, so that the sample in the resistance coil is directly heated. This heating method can quickly transfer heat to the sample and the heating speed is fast. However, due to the large cavity space, during the heating process, the heat is easily dissipated to the surrounding environment, resulting in the temperature uniformity may be slightly inferior to the tube furnace. However, for situations where rapid heating and large batches of samples are required, the direct heating method of the muffle furnace can improve the thermal efficiency to a certain extent.

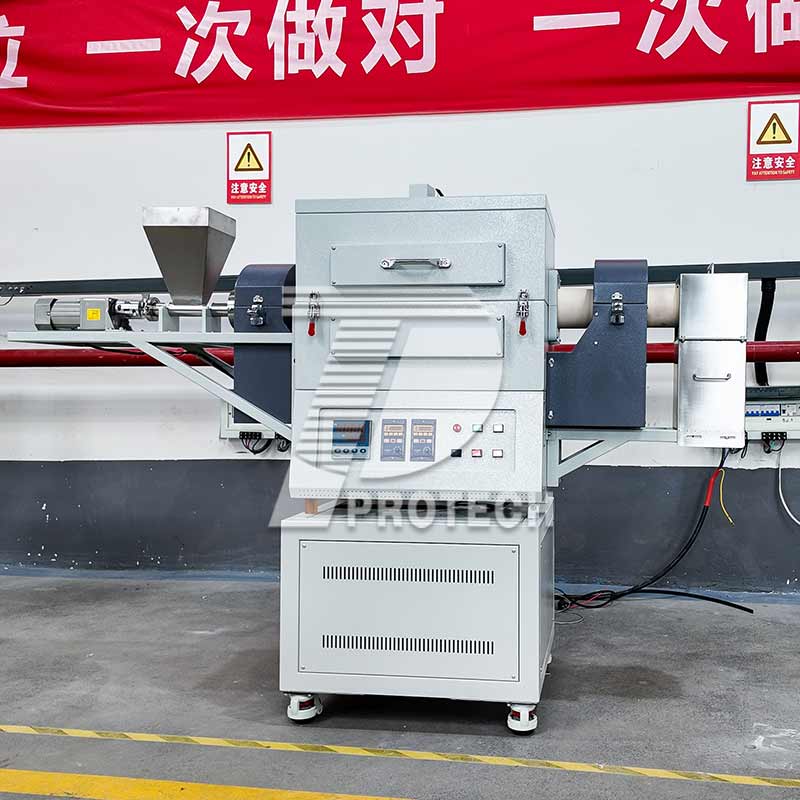

tube furnace

Effect of structural design on thermal efficiency
Tube furnace: The tubular structure design of the tube furnace gives it an advantage in atmosphere control and can accurately control the atmosphere environment required for the experiment. However, this structure also makes its internal space relatively small, which is not conducive to the processing of large-scale samples. Moreover, in order to ensure the stability of the atmosphere, the two ends of the heating tube need to be sealed, which increases the resistance to heat transfer to a certain extent and may reduce the thermal efficiency. In addition, the heating tube of the tube furnace usually needs to consume a certain amount of energy to maintain its own temperature, which will also affect the overall thermal efficiency.

Muffle furnace: The box-type structure design of the muffle furnace has a larger heating cavity and can process multiple samples at one time. This structural design makes the muffle furnace more efficient when processing large batches of samples. At the same time, due to its relatively simple structure and no complex pipeline design, the heat loss during the transfer process is reduced. However, the larger cavity space also means that more energy needs to be consumed to reach the required temperature during the heating process, especially in the early stage of heating, and the thermal efficiency may be affected to a certain extent.

2. Thermal efficiency performance in different application scenarios

Small batch sample processing
Tubular furnace: In the scenario of small batch sample processing, the thermal efficiency of the tubular furnace has certain advantages. Because its heating tube can accurately control the temperature and the heat distribution is uniform, it can achieve efficient heating for small volume samples. At the same time, the tubular furnace can accurately control the atmosphere according to the experimental requirements, avoid the sample from being affected by factors such as oxidation during the heating process, and ensure the quality of the sample. For example, in some experiments on the preparation of nanomaterials, the tubular furnace can provide precise temperature and atmosphere conditions, so that the sample can be heated in the best environment, thereby improving the thermal efficiency and experimental effect.

Muffle furnace: For small batch sample processing, the thermal efficiency of the muffle furnace is relatively low. Due to its large cavity space, it will cause energy waste when processing small volume samples. Moreover, the temperature uniformity of the muffle furnace during the heating process may not be as good as that of the tubular furnace, which will also affect the heating effect and thermal efficiency of the sample. For example, in some ashing experiments that only need to process a small amount of samples, if a muffle furnace is used, it may cause too long heating time and excessive energy consumption.

Large-batch sample processing
Tubular furnace: In the scenario of large-batch sample processing, the thermal efficiency of the tubular furnace is relatively low. Due to its limited sample processing capacity, it needs to be heated in batches multiple times, which increases the total heating time and energy consumption. Moreover, the heating tube of the tubular furnace may not meet the needs of rapid heating when processing large batches of samples, resulting in low overall thermal efficiency. For example, in industrial production, if a large amount of material needs to be sintered, the use of a tubular furnace may lead to low production efficiency and increased energy costs.

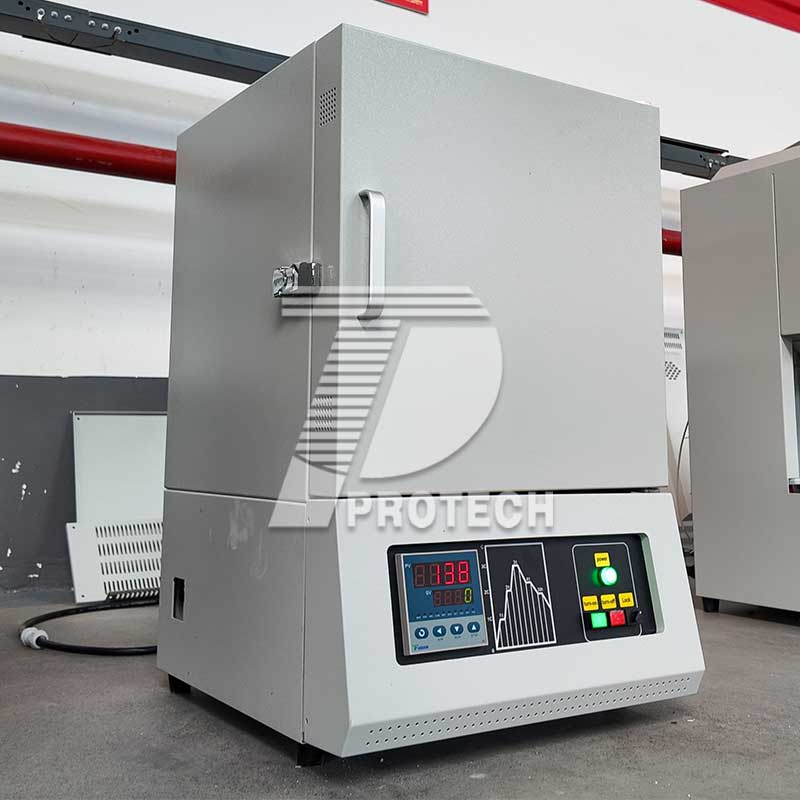

muffle furnace

Muffle furnace: The muffle furnace has obvious thermal efficiency advantages in large-batch sample processing. Its larger heating cavity can accommodate multiple samples at a time, reducing the number of batch heating times and improving heating efficiency. At the same time, the direct heating method of the muffle furnace can heat up quickly, allowing the sample to reach the required temperature in a shorter time, thereby improving the overall thermal efficiency. For example, in some industrial annealing processes, the muffle furnace can process multiple workpieces at the same time, greatly improving production efficiency and reducing energy consumption.

3. Methods to improve thermal efficiency
Methods to improve thermal efficiency of tubular furnace
Optimize heating tube design: select appropriate heating tube material and diameter to improve the heat conduction efficiency of the heating tube. For example, using quartz or corundum materials with high thermal conductivity to make heating tubes can reduce the loss of heat during the transfer process. At the same time, the diameter of the heating tube is reasonably designed to ensure that the sample can be fully heated and improve the heating efficiency.

Precisely control the atmosphere: Under the premise of ensuring the atmosphere required for the experiment, minimize the flow and consumption of gas. By optimizing the design of gas pipelines, the utilization rate of gas can be improved and unnecessary energy consumption can be reduced. In addition, during the heating process, the time and speed of gas introduction should be reasonably controlled to avoid turbulence in the heating tube and affect heat transfer.

Strengthen insulation measures: Add an insulation layer to the outside of the tubular furnace to reduce the loss of heat to the surrounding environment. Select high-quality insulation materials, such as ceramic fibers, to improve the insulation effect. At the same time, optimize the design of the seals at both ends of the heating tube to reduce heat leakage from the seals.

Methods for improving thermal efficiency of muffle furnace
Improve heating elements: Use efficient heating elements, such as new resistance wire materials, to improve the heating efficiency of heating elements. At the same time, arrange heating elements reasonably to ensure that heat can be evenly distributed in the heating chamber, improve temperature uniformity, and reduce energy waste.

Optimize cavity structure: Optimize the cavity structure of the muffle furnace to reduce the volume of the cavity and reduce energy consumption during heating. For example, use materials with good thermal insulation properties to make the cavity wall to reduce heat loss to the surrounding environment. In addition, reasonably design the shape and size of the cavity, increase the placement density of samples, increase the number of samples processed at a time, and improve thermal efficiency.

Intelligent temperature control: Use advanced temperature control systems to achieve precise control of the temperature of the muffle furnace. According to the heating requirements of the sample, reasonably set the heating rate, insulation time and cooling rate to avoid excessive heating and energy waste. At the same time, the temperature in the furnace is monitored in real time through the intelligent control system, and the heating power is adjusted in time to improve thermal efficiency.

4. Conclusion
The tube furnace and the muffle furnace have their own advantages and disadvantages in terms of thermal efficiency, and their thermal efficiency is affected by many factors such as heating method, structural design and application scenario. In the scenario of small batch sample processing and precise control of temperature and atmosphere, the tube furnace has higher thermal efficiency; while in the scenario of large batch sample processing and high heating rate requirements, the thermal efficiency of the muffle furnace is more prominent. By taking corresponding measures, such as optimizing structural design, improving heating elements, and precisely controlling temperature and atmosphere, the thermal efficiency of tube furnaces and muffle furnaces can be further improved to meet the needs of different users. In practical applications, users should consider various factors comprehensively according to specific experimental or production needs and choose the appropriate furnace type to achieve the best thermal efficiency and economic benefits.
