model:PT-M1700-DL
Dental zirconia sintering furnace
Application: Mainly used in the crystallization and sintering of zirconia dental crowns. At the same time, it can also achieve high temperature sintering and annealing treatment for materials in the field of powder metallurgy.
Contact us for customize
send-email:
info@lab-furnace.com
Detailed Parameters Of The Product
Description：IrkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Dental zirconia sintering furnace is mainly used for crystallization and sintering of zirconia crowns in denture processing factoryIrkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacIrkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacFeatures of zirconia sintering furnace :IrkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

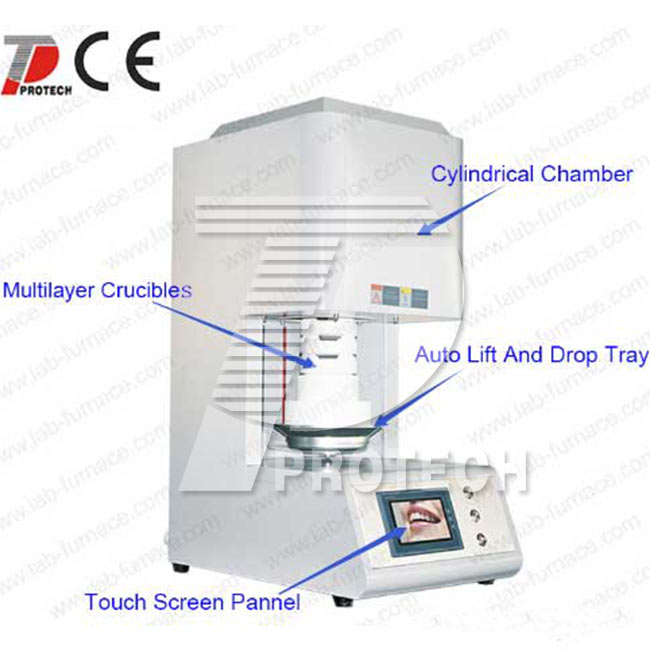

(1).Upgrading control system with touch screen for easy operatingIrkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(2).Cylinder heating chamber deisgn with five pieces heating elementIrkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(3).Auto lifting and downing tray for convenient products loading and pickingIrkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(4).High purity heating elements and chamber materials to keep zirconia translucentIrkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(5).Real time temperature monitoring with heating curve showing and temperature calibration.IrkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!IrkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
IrkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Technical parameters of zirconia sintering furnace :
| Model |
PT-M1700-DL |
| Chamber size |
100x120mm |
| Working temperature |
1600℃ |
| Thermal control |
PID Programming PID Control |
| Control accuracy |
+/- 1℃ |
| Heating element |
MoSi2 *5 |
| Chamber |
Alumina ceramic fiber |
| Max. power |
1800W |
| Working power |
AC110/220/440V 50/60HZ |
| Dimensions |
530x530x820mm |
IrkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacRelated Accessories:IrkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac Crucible | Zirconia beads ｜ Crucible Tong ｜ Protective gloves ｜ Tray ｜ B type thermocouple ｜ Spare Mosi2 Heating element ｜ Mosi2 Heating element Fixture 丨 Filling brick ｜ Aluminum bag ｜ Spare Aluminum bag、Fixture ｜ Allen wrench ｜ Power line ｜ User Manual ｜ Loading tableIrkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacWorking temperature, dimensions, chamber size can be made according special requirementIrkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
