Brief Introduction:

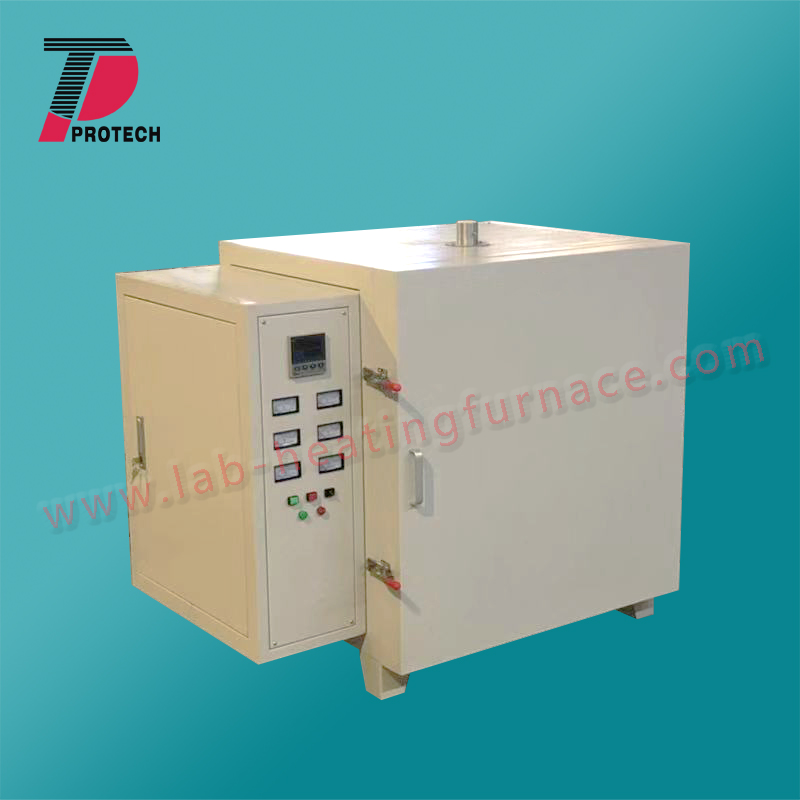

PT-M1200 calcination furnace is mainly used for the high temperature sintering and annealing of materials.
The main features are as below:
1. High uniform temperature.
2. Easy to operate.
3. Over temperature protection and alarm
Technical Parameter:
|
Chamber Structure |
Side Door |
|
Display |
LED |
|
Working Temperature |
≤1100℃ |
|
Heating Rate |
Suggestion 0~10℃/min (Max. 20℃/min) |
|
Inside Chamber Size |
400×600×600mm (LxWxH) |
|
Heating Element |
Resistance Wire with Mo Imbedded in chamber |
|
Thermocouple |
K Type |
|
Max. Power |
20 KW |
|
Working Voltage |
AC 380V three phases, 50 Hz |
|
Temperature Control |
PID automatic control via SCR power control |
|
Heating curves |
30 steps programmable |
|
Chamber material |
Alumina Fiber |
|
Warranty |
One year limited warranty (Consumable parts such as heating elements are not covered by the warranty) |
|
Standard Accessory |
Crucible Clip x 1pair Protective Glove x 1 pair |
