A 1400°C atmosphere brazing furnace helps US aerospace component manufacturers achieve precision brazing of high-temperature alloys.

1. Client Introduction

Client Name: A US-based aero-engine component manufacturer
Industry: Aerospace, Gas Turbine, High-Temperature Alloy Precision Manufacturing
Core Needs: Vacuum/atmosphere-protected brazing of nickel-based high-temperature alloys such as Inconel and Hastelloy in hot-end components of aero-engines (e.g., turbine blades, combustion chamber components, heat exchangers) under strictly controlled inert or reducing atmospheres, requiring welds to be free of oxidation, porosity, and highly dense.

This client is a Tier 2 supplier to aero-engine manufacturers such as Pratt & Whitney and GE, and has long been engaged in the welding and assembly of high-temperature alloy sheet metal parts and precision components. Traditional manual flame brazing and vacuum brazing furnaces have the following problems: manual brazing quality is unstable and relies on highly skilled technicians; large vacuum brazing furnaces have high investment and operating costs, and for small and medium-sized parts, they suffer from the inefficiency of being "oversized for small parts." The customer urgently needs a medium-sized, high-temperature, atmosphere-controlled brazing furnace capable of melting and wetting nickel-based brazing filler metals below 1400℃, while protecting the workpiece surface from oxidation. The equipment should also be of moderate size, flexible in operation, and suitable for multi-variety, small-batch production.

2. Equipment Introduction

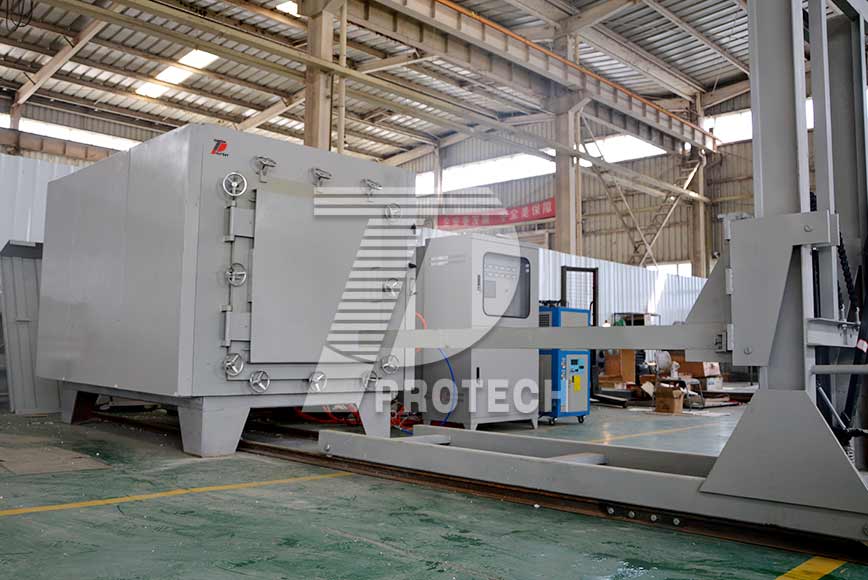

Equipment Name: High-Temperature Atmosphere Brazing Furnace
Product Model: PT-A1400-2000LDZ
Operating Temperature: ≤1400℃ (Common Brazing Temperature: 1000～1250℃)
Furnace Chamber Dimensions: Customizable; this case uses 300×400×400mm (48L), accommodating a maximum workpiece size of 250×300×300mm
Furnace Chamber Material: High-purity alumina polycrystalline fiber, high temperature resistant, low heat capacity, energy-saving
Heating Element: High-quality silicon carbide rod (SiC), high temperature resistant... High efficiency, long lifespan, and four-sided arrangement ensure uniform temperature field.
Temperature Control System: PID+SCR programmable temperature control, 30-segment programmable, temperature control accuracy ±1℃, furnace temperature uniformity ±3℃ (at 1200℃).
Atmosphere System: Fully sealed stainless steel furnace shell + water-cooled sealed flange door, equipped with an inlet (can be connected to a mass flow meter) and an exhaust port, which can be supplied with high-purity Ar, N₂, H₂/N₂ mixed gas (reducing atmosphere) or vacuum (optional vacuum pump set, ultimate vacuum ≤5×10⁻²). Safety Design: Over-temperature alarm, thermocouple breakage protection, hydrogen leak detection (if using H₂), water pressure undercurrent protection, automatic exhaust interlock.
Control System: 10-inch touchscreen, capable of storing multiple brazing process curves, real-time display of parameters such as temperature, atmosphere flow rate, furnace pressure, and vacuum level.
Special Features:

In-furnace oxygen analyzer (ppm level), ensuring oxygen content remains below 50ppm during brazing.

Rapid cooling system (optional), allowing for rapid cooling after brazing, shortening the production cycle.

Programmable multi-segment atmosphere control, enabling a fully automated process of "vacuuming → gas filling → heating → heat preservation → cooling".

This equipment is designed for precision brazing of high-temperature alloys, stainless steel, titanium alloys, and other materials, and is particularly suitable for applications with stringent welding quality requirements in aerospace, nuclear energy, and electronic packaging fields. Its advantages include: a 1400℃ high-temperature capability to meet the melting temperature of most nickel-based brazing filler metals; excellent sealing and atmosphere control to ensure oxidation-free brazing; and a medium-sized furnace that balances capacity and flexibility.

3. Equipment Application

Specific Process: Vacuum/hydrogen atmosphere brazing of nickel-based superalloys

Workpiece Processed: Impact cooling plate assemblies in aero-engine combustion chambers

Solution Type: Nickel-based solder

Brazing Environment: Vacuum or high-purity hydrogen/argon mixture; reducing atmosphere helps remove surface oxide film

4. Customer Feedback

*“We chose this 1400℃ atmosphere brazing furnace because it perfectly fills the gap between manual brazing and large vacuum furnaces. The sealed furnace chamber, combined with an H₂/Ar mixed gas, can stably control the oxygen content below 30ppm, resulting in a bright silver surface on the welded workpieces, eliminating the need for pickling or polishing. What we appreciate most is its programmed multi-stage temperature control—a fully automated process that can be set up for ‘vacuuming → gas backfilling → multi-stage heating → multi-stage holding → rapid cooling.’ We can set it before leaving get off work in the evening and retrieve the finished product directly the next morning, greatly improving efficiency. Furthermore, the maximum temperature of 1400℃ allows us to expand to higher melting point brazing filler metals (such as copper-based and palladium-based) in the future. The equipment has been running smoothly for 14 months without needing to replace the heating element (silicon carbide rod), and furnace cleaning is very convenient. We highly recommend it to aerospace and precision manufacturing companies that require high-precision, small-to-medium batch brazing.”*

— Mr. James Carter, Welding Process Supervisor, a US-based aero-engine component manufacturer
